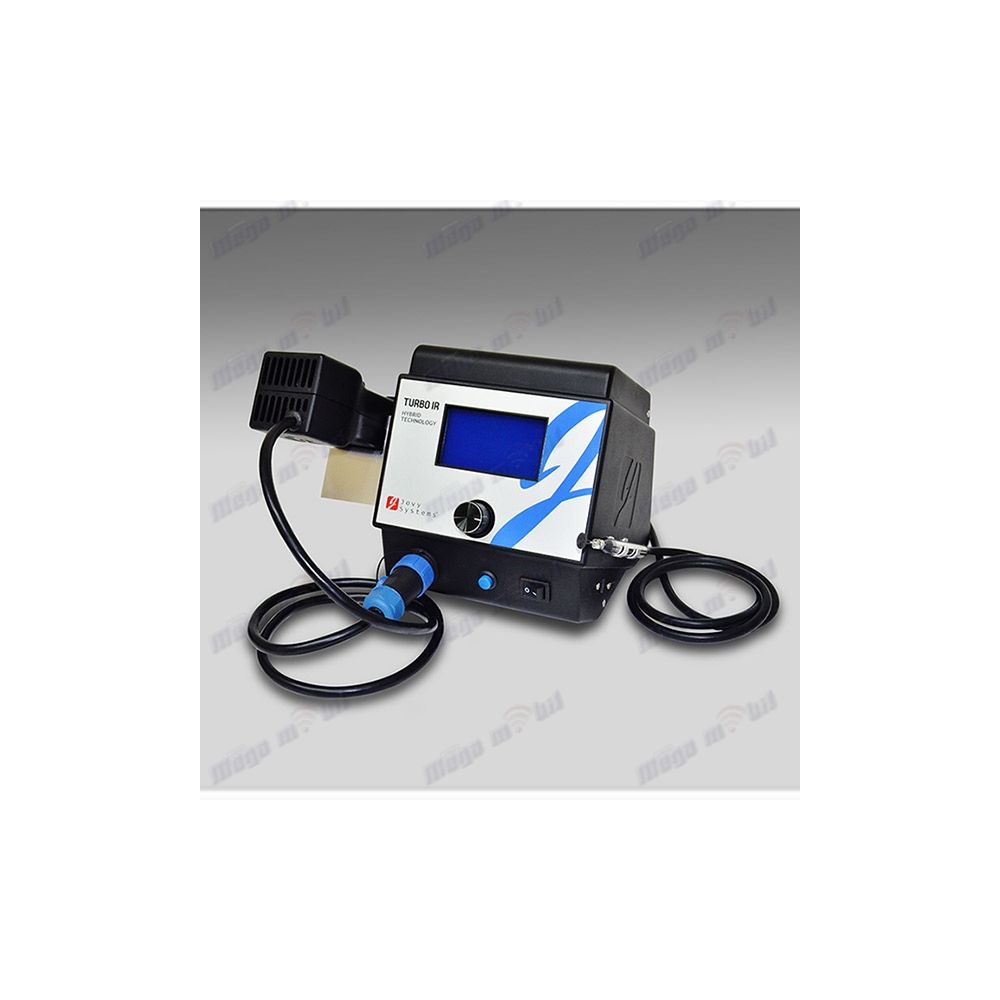

Lemna stanica Jovy Systems Turbo IR JH-001/002

Артикли:
Вкупно: ден.

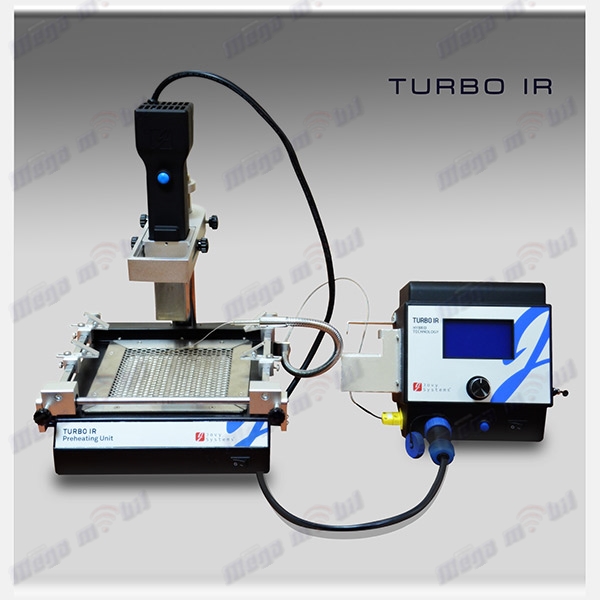

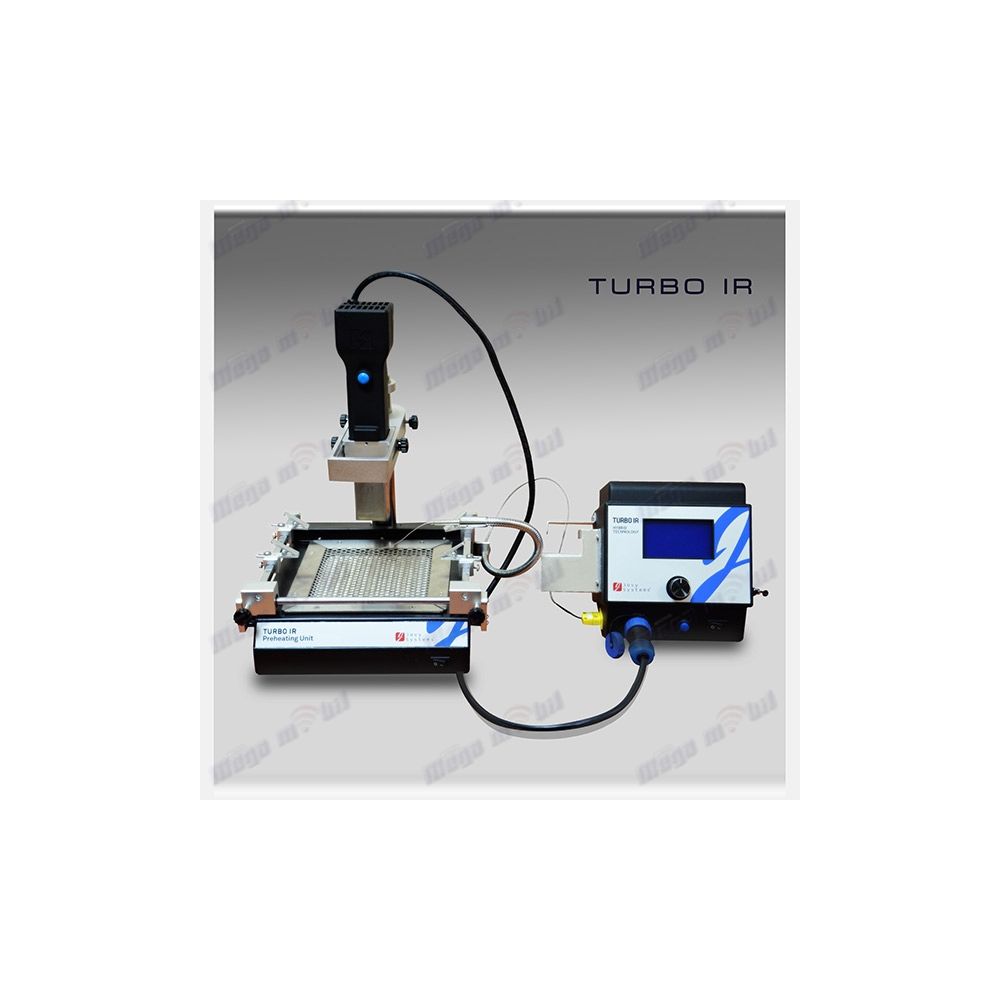

Lemna stanica Jovy Systems Turbo IR JH-001/002

Шифра:14010
Категорија: Алат

http://www.jovy-systems.com/products/bga-rework-stations/benchtop-rework-station-turbo-ir.html

Technical specification of Turbo IR:

Technical Specification : Hand Held Unit
Dimensions WxHxD	155 * 175* 210 mm
Hand Held unit voltage	230 volt AC / 5 volt DC for control
heating power	250 watt
Main voltage	220-240 volt AC / 50-60 Hz
ambient temperature	0-40° c
Maximum output temperature	550 ° c
IR Wave length	2-8 µm
Laser class	class 2
Nozzle sizes	20 20 mm, 10 10 mm, 6 *6 mm

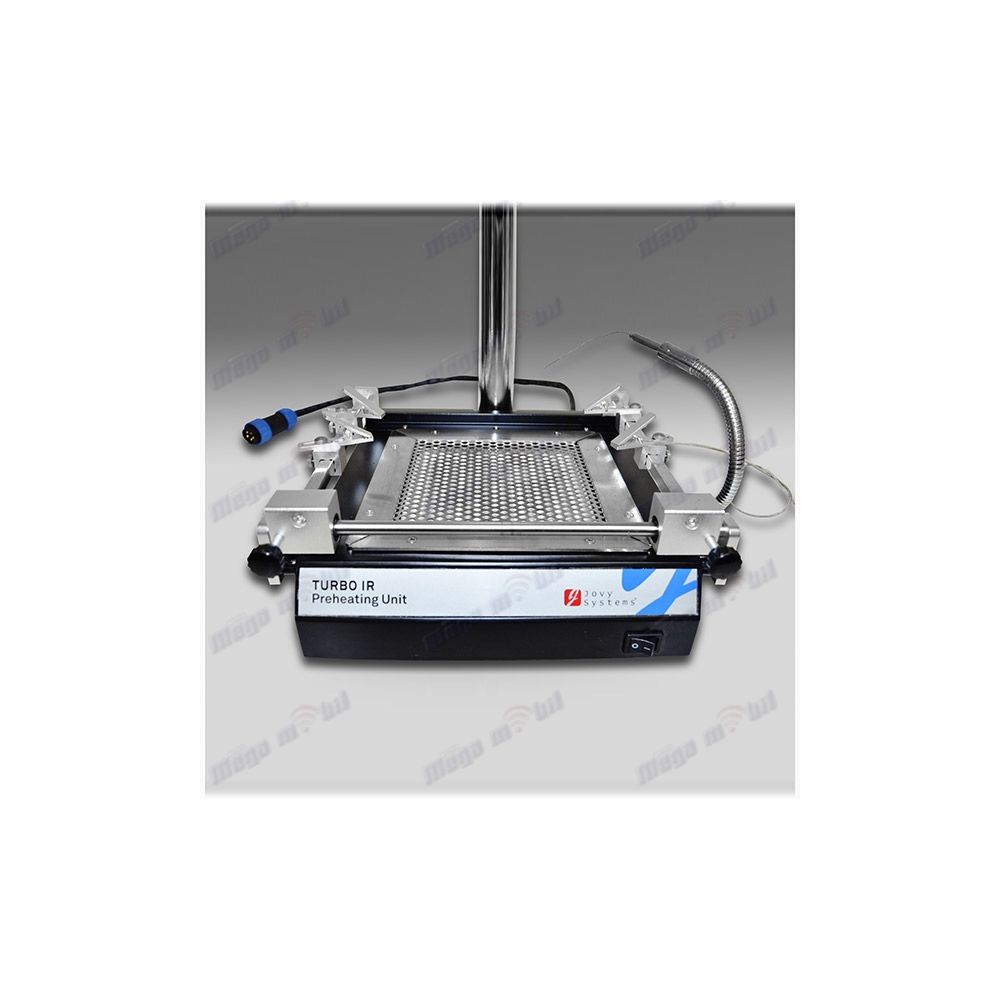

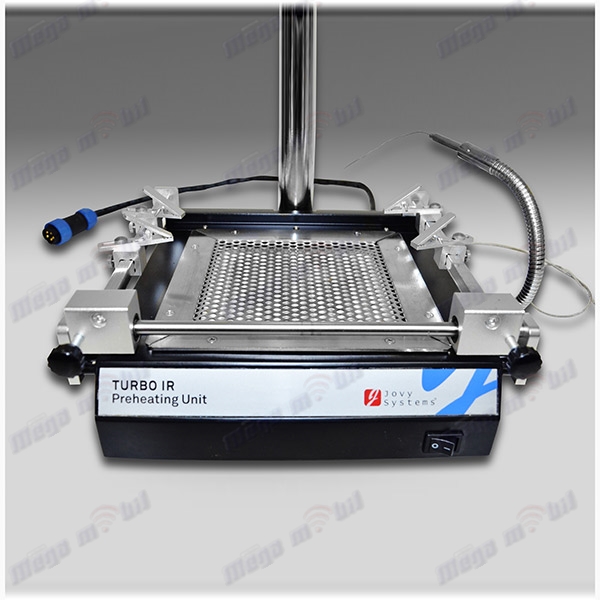

Technical Specification : Pre-heating Unit
Dimensions WxHxD	220 * 225 * 405 mm
Main voltage	220-240 volt AC / 50-60 Hz
Control voltage	5 volt DC
heating power	800 watt
Maximum PCB size	200 * 165 mm

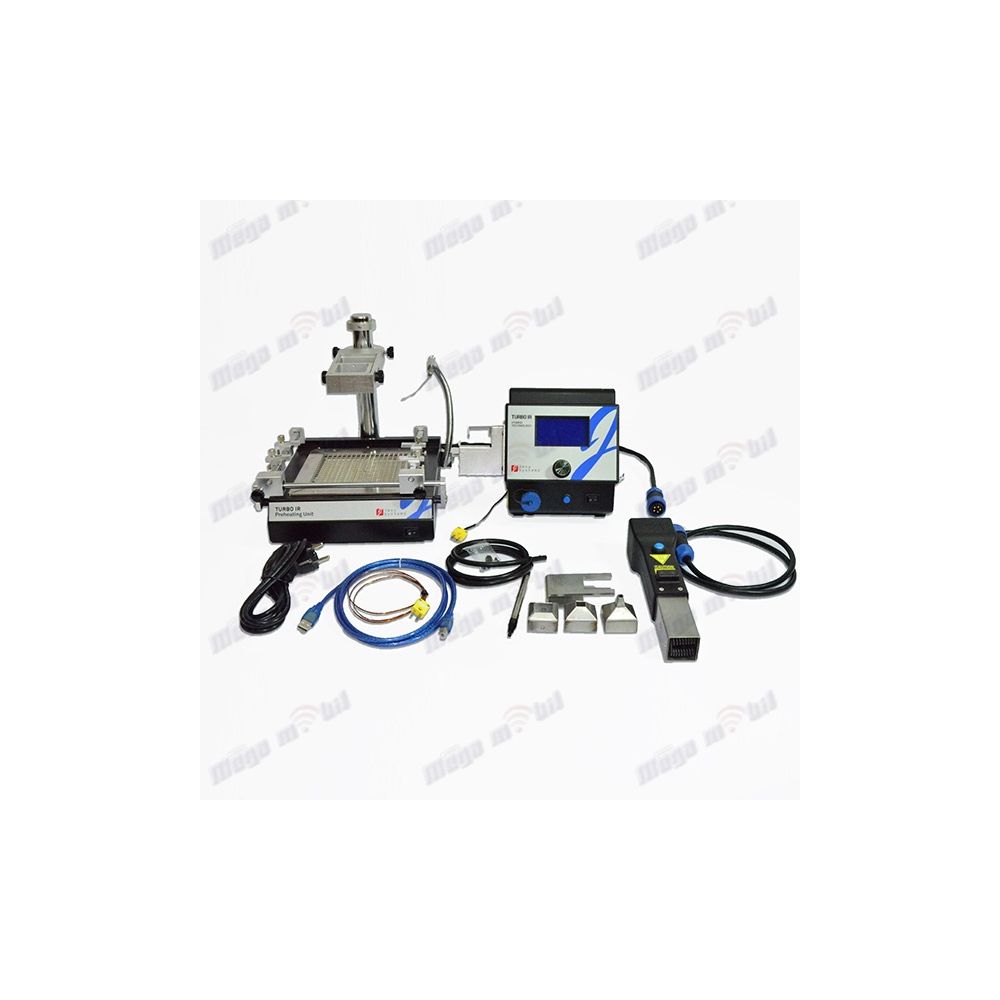

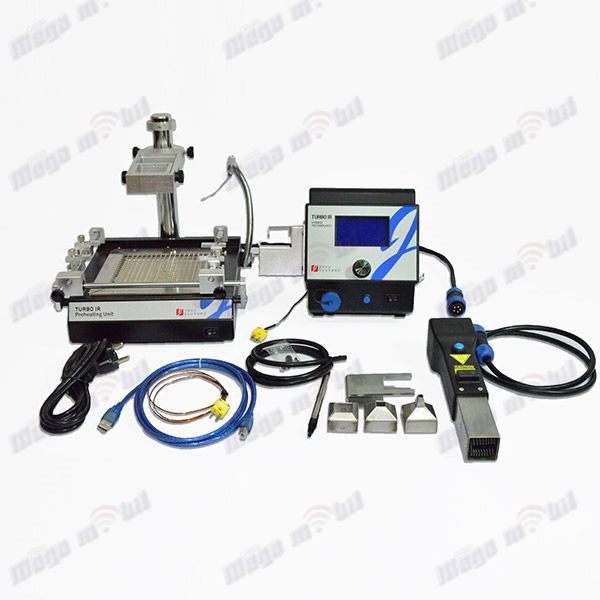

Turbo IR Packing list:

Turbo IR all-inclusive package will grant you complete peace of mind.

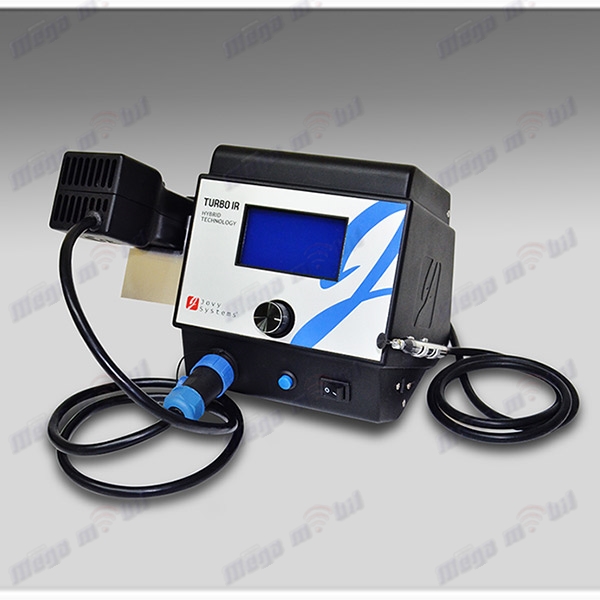

    1)Control Unit
    2)Hand-Held Unit
    3)Pre-heating Unit
    4)Nozzles 10x10mm , 20x20mm, and 6x6mm
    5)Usb cable
    6)Pump Set (pump tube+ pump pen+5 nozzles)
    7)Power cable
    8)Flux 10 cc
    9)Reflective Tape 10m
    10)Solder paste
    11)User Guide
    12)Multilingual Start up guide.
    13)CD for Jovy’s Videos.
