Features

• Smart / Intelligent, Multifunction. AC/DC voltage measurement, AC/DC current measurement, resistance measurement, capacitance measurement, frequency measurement, duty cycle, diode testing, continuity testing, NCV and temperature.
• Portable design. Small, handheld and compact with protective holster to protect the multimeter.
• Wide range of applications. It's a perfect tool for the laboratory, factory, hobbyist and home usage.
• Easy to use and operate, one button operation.
• Clear and easy to read. With large backlight LCD display, data hold, comfortable and easy to read the measurements even in dim and dark environment.
• More advantages such as auto-ranging, true RMS, auto power off, analog bargraph, low battery indication and over-ranging indication.

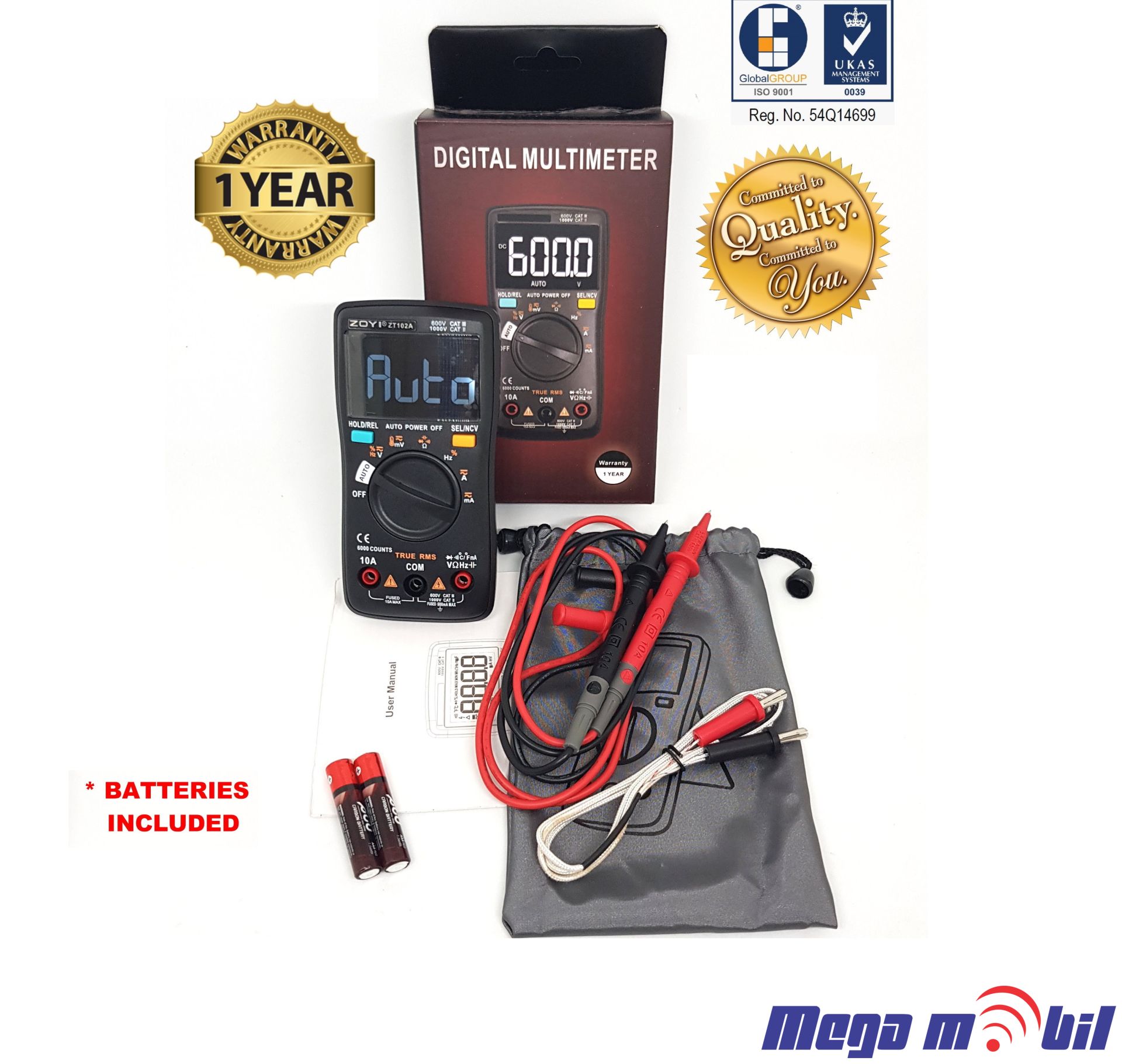

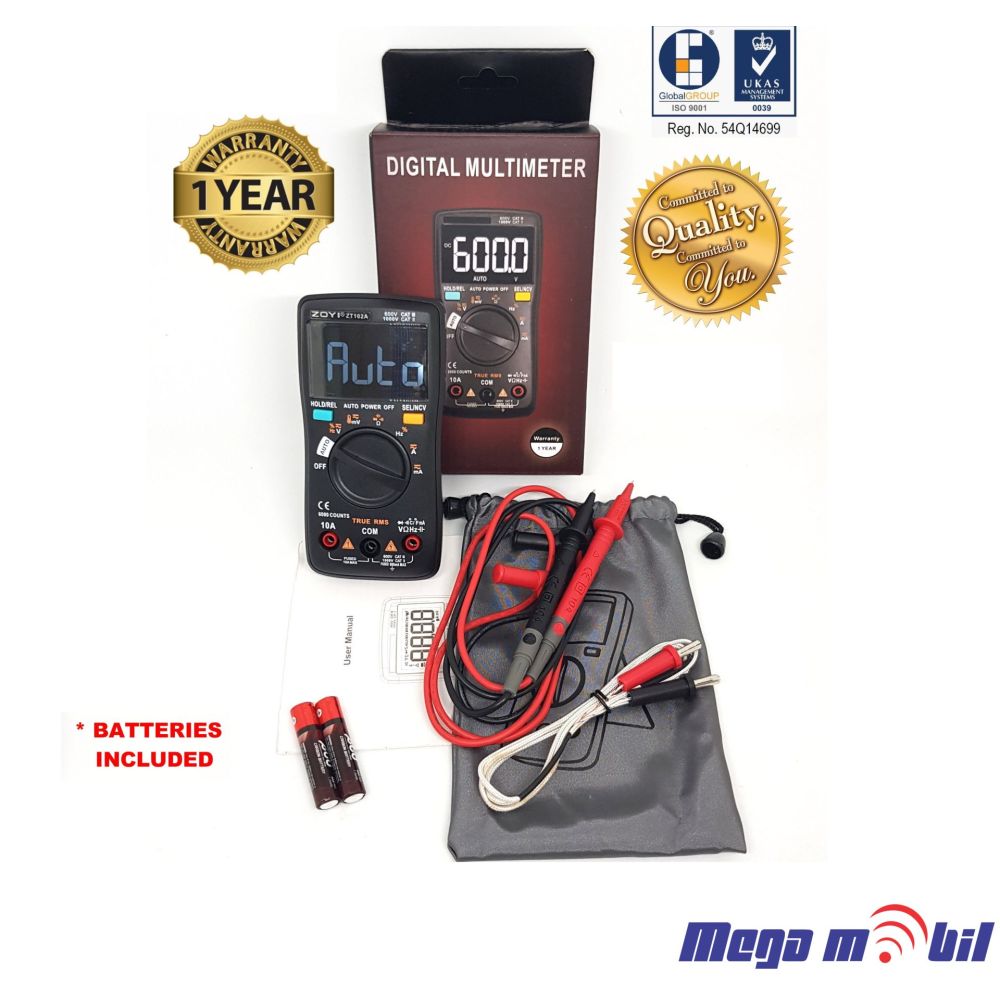

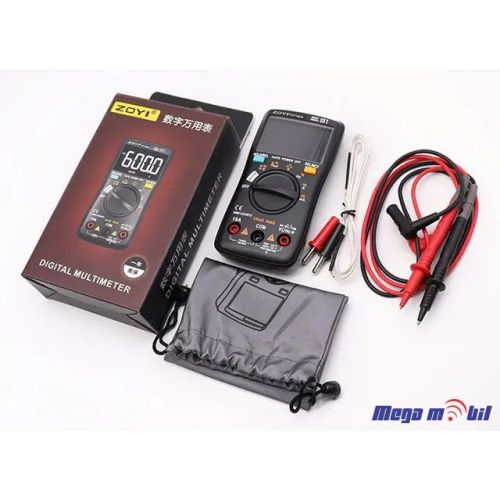

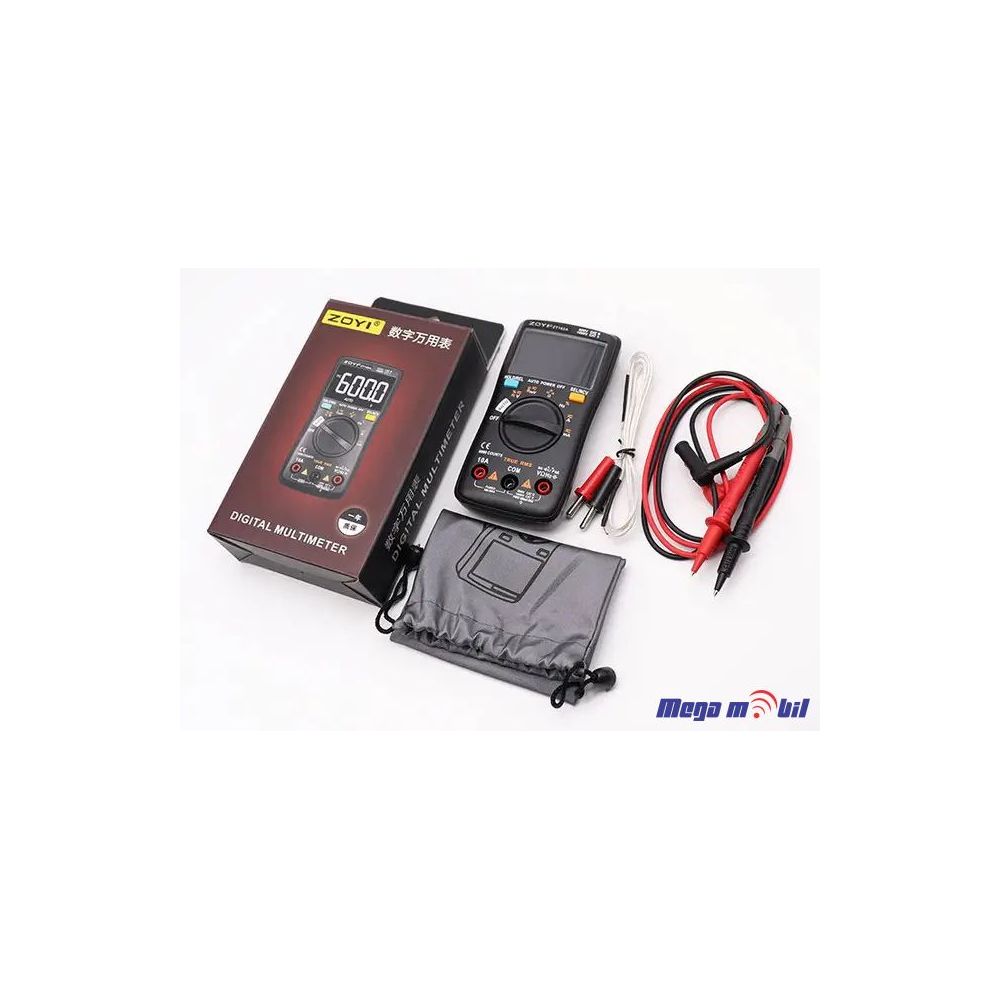

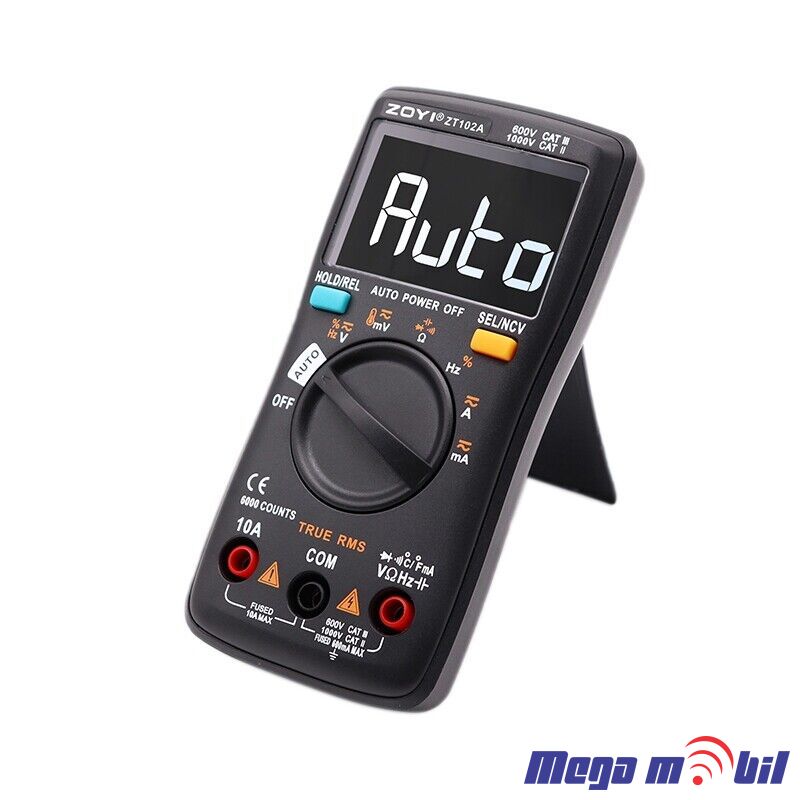

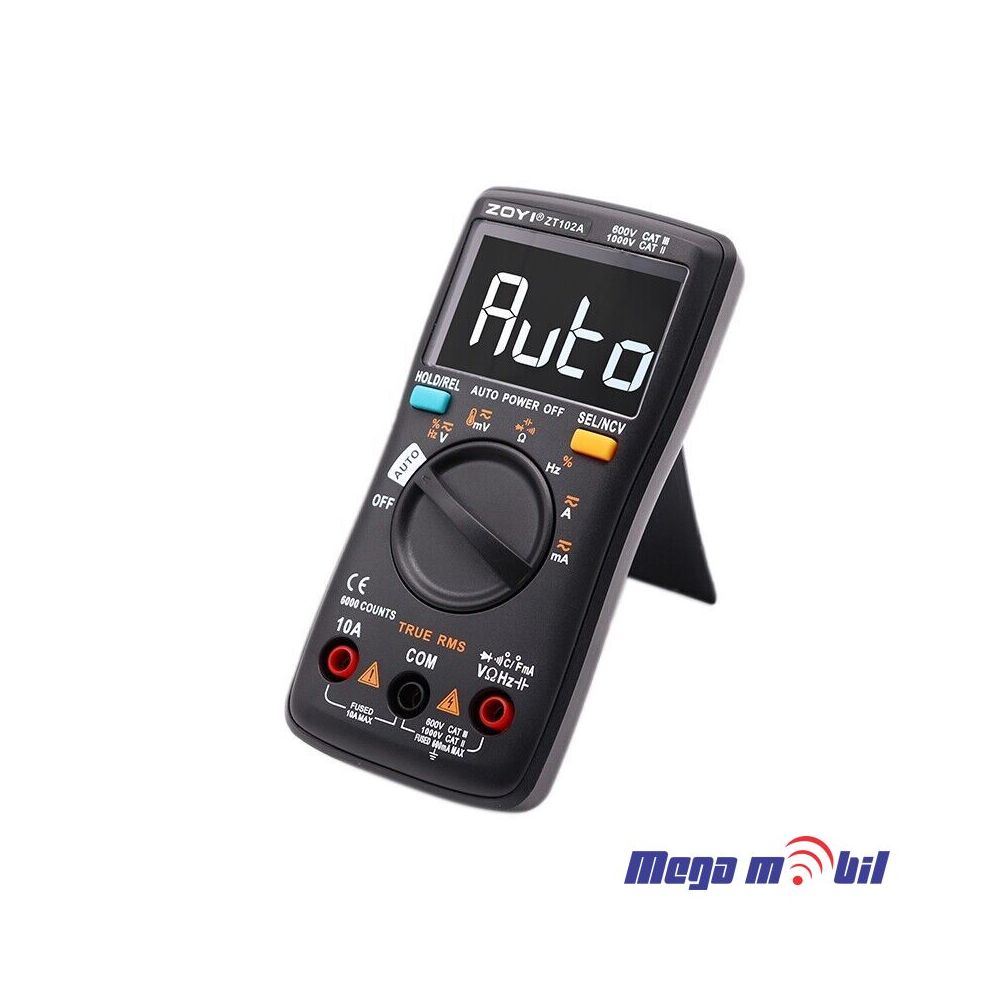

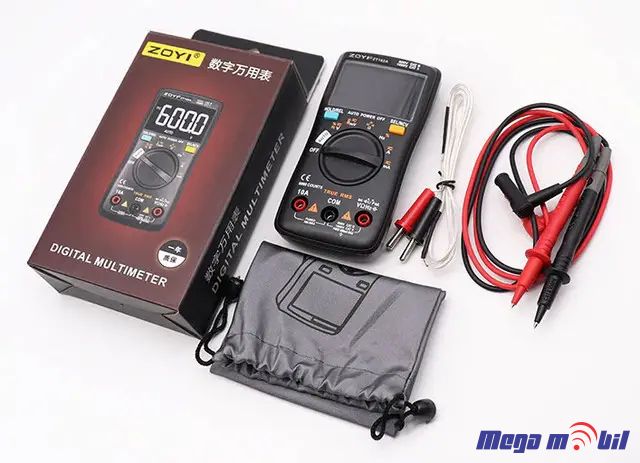

This ZT102A is a handheld digital multimeter, high reliability and portable which is a perfect tool for the laboratory, factory, hobbyist and home usage. It can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, continuity, NCV and temperature. Moreover, more advantages such as LCD backlight, data hold, auto-ranging, true RMS, auto power off, low battery indication and over range indication.

Specifications

• Model : ZT102A
• Display : 6000 Counts
• Backlight : Yes
• Data Hold : Yes

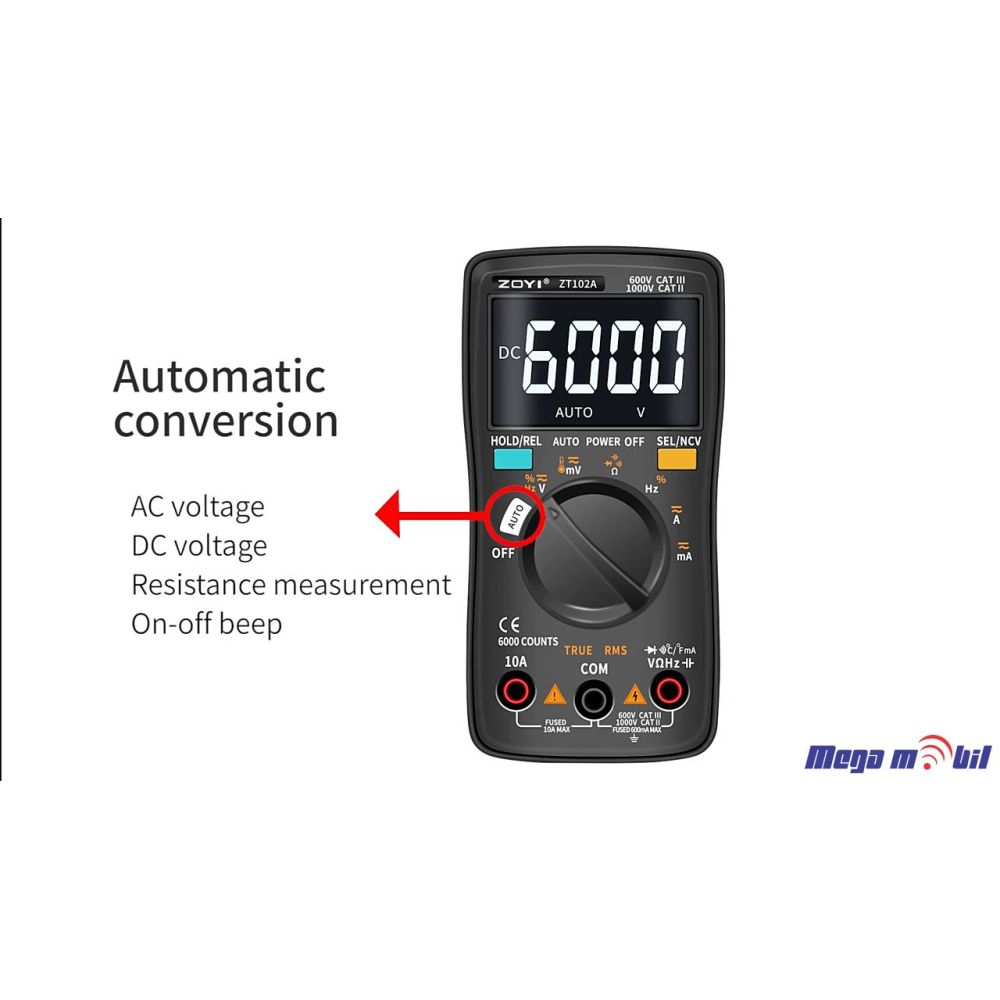

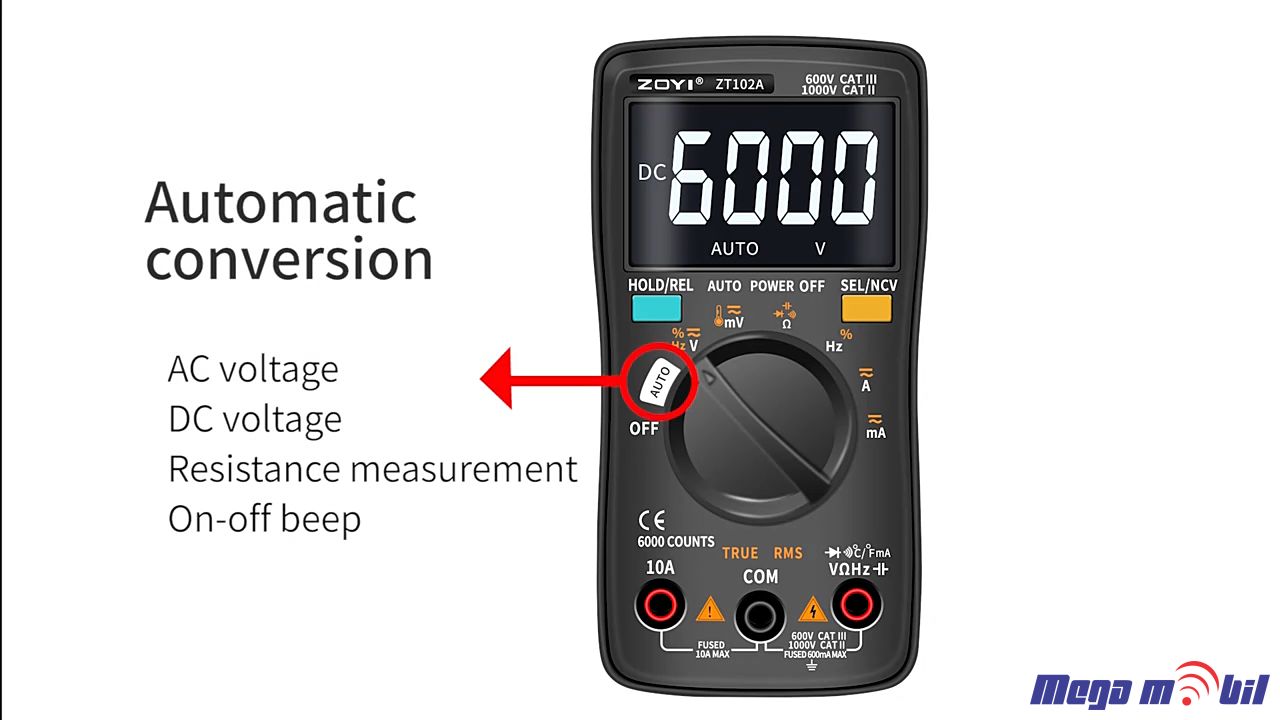

• Auto-Ranging : Yes
• True RMS : Yes
• Auto Power Off : Yes
• Low Battery Alert : Yes
• Smart Mode : Yes
• Over-Ranging Indication : Yes
• Diode Test : Yes
• Continuity Test : Yes
• NCV Test : Yes
• DC Voltage : 60mV / 600mV / 6V / 60V / 600V / 1000V ±(0.5%+3),
• AC Voltage : 60mV / 600mV / 6V / 60V / 600V / 750V ±(1.0%+3),
• DC Current : 60mA / 600mA / 6A / 10A ±(1.2%+3),
• AC Current : 60mA / 600mA / 6A / 10A ±(1.5%+3),
• Resistance : 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ ±(0.5%+3); 60MΩ ±(1.5%+3)
• Capacitance : 9.999nF ±(5.0%+20), 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF ±(2.0%+5), 9.999mF / 99.99mF ±(5.0%+5)
• Frequency : 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz ±(0.1% + 2)
• Duty Cycle : 1%~99% ±( 0.1%+2)
• Temperature : -20℃~1000℃ (-4℉~1832℉) ±(2.5%+5)
• Power Supply : 2 x 1.5V AA battery (included)
• Size :130 x 65 x 32mm
• Weight : 114g
• Warranty : 1 year local supplier and international manufacturer warranty against manufacturing defects
