Product Introduction
1. Binocular intelligent zoom 6 million HD ball machine;
2. Intelligent detection, intelligent tracking zoom, can solve the problem of unclear vision at long distance;
3. Support dual-stream output, free switching between dual screens and picture-in-picture display on mobile phones, and screen sharing by multiple people
4. Dual wick design, multiple angle lamp cup combination, can solve the problem of unclear vision at long distance in night vision;
5. Two-way voice intercom, real-time communication without distance;
6. Intelligent loop recording, view and playback anytime, anywhere;
7. Both local and cloud services can be stored;
8. Easy to install, install by yourself, no need to hire professional construction personnel; 9. Adjustable angle: 350° left and right, 90° up and down;
3. Application scenarios: factories, schools, homes, shopping malls, etc., home, company, parents, pets...."

Parameter table Product description

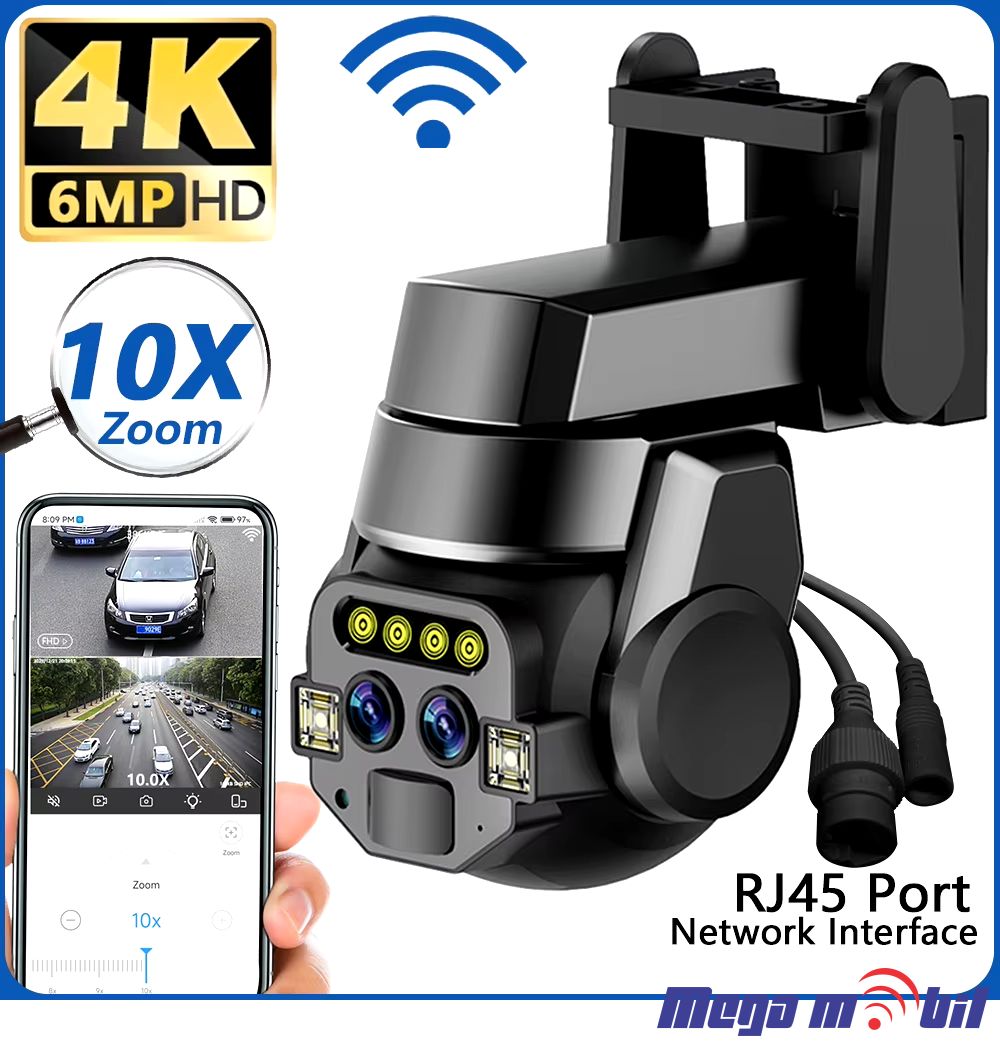

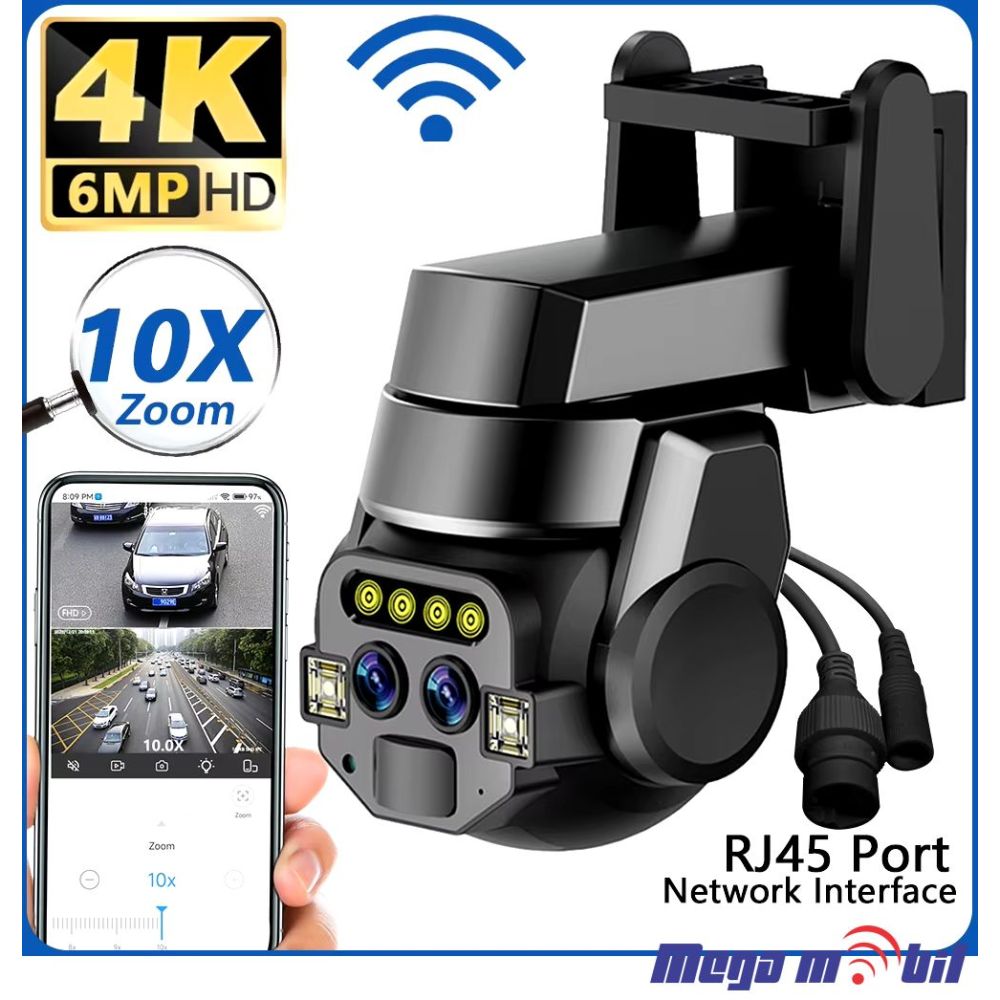

Product type 6 million intelligent zoom HD outdoor waterproof camera
Model CM-Q820EM
Comprehensive Main control chip CM chip
APP operating system Android, IOS
Sensor 1/2.8″ Image Sensor
Compression format H.265/H.264
Pixel 2304*1296*2 6MP
APP Qianxin PRO
Networking method WIFI single frequency 2.4G
Alarm method Detection method Human detection, motion detection
Detection distance 0~12 meters
Detection angle 72°
Alarm method Speaker alarm, alarm recording, information push, picture push, video push (need to open cloud storage)
Pan-tilt Pan-tilt angle Horizontal 350° Vertical 90°
Rotation speed Horizontal 30°/second Vertical 20°/second
Night vision mode Full color night vision support
Infrared Infrared LED (dot matrix 6 20mil) distance 20M
White light White LED (6 white lights 1W) distance 15M
Audio Built-in speaker 2W
Built-in microphone Monitoring range 10 meters
Lens Focal length 4.0 mm+8mm
Aperture F2.0
Storage Cloud storage Cloud storage (alarm recording)
Local storage TF card (up to 128GB)
Power supply DC 12V 1.2A
Maximum working power <15W
Other Working environment Indoor\outdoor
Working temperature -20°~+60°
Working humidity 10%－90%RH
Accessories Color box size Length*Width*Height:
Carton size Length*Width*Height: (unit/box)

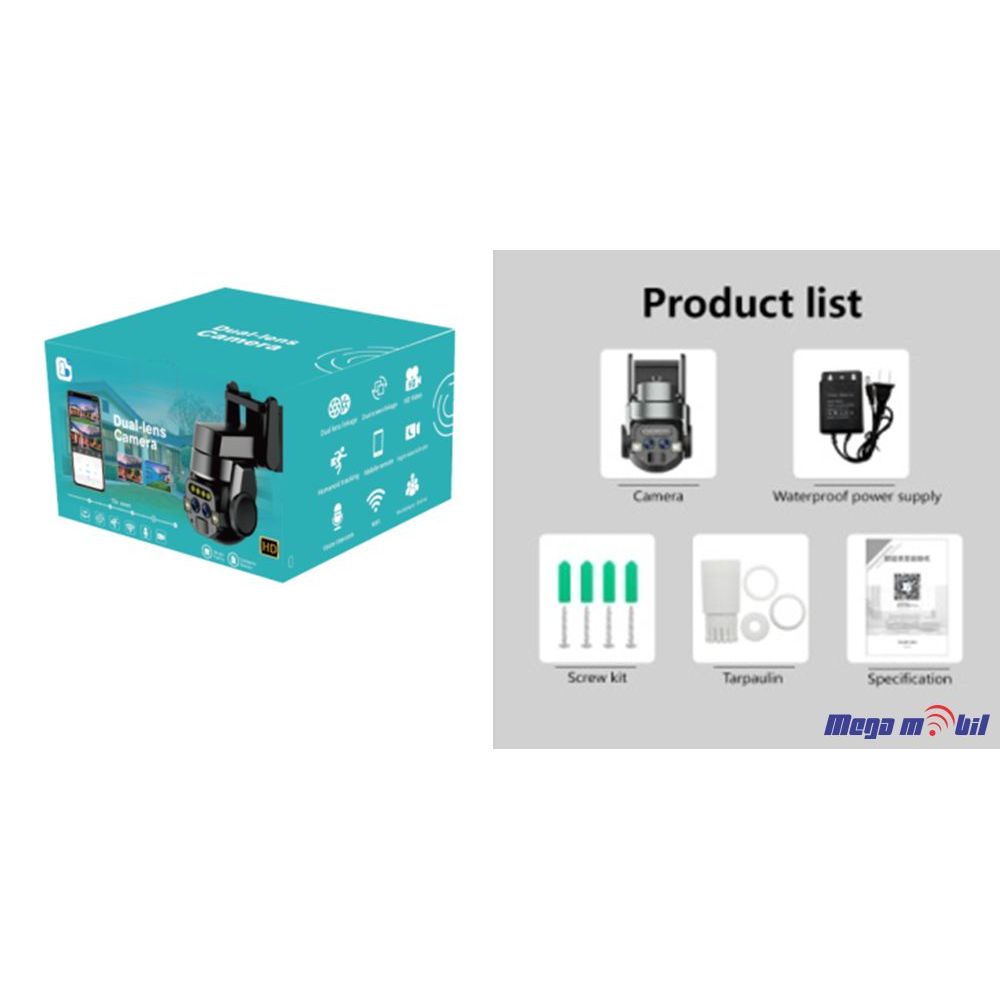

Accessories Camera: x1 Screw bag: x1 Manual: x1 Waterproof cap: x1 Power adapter: x1
