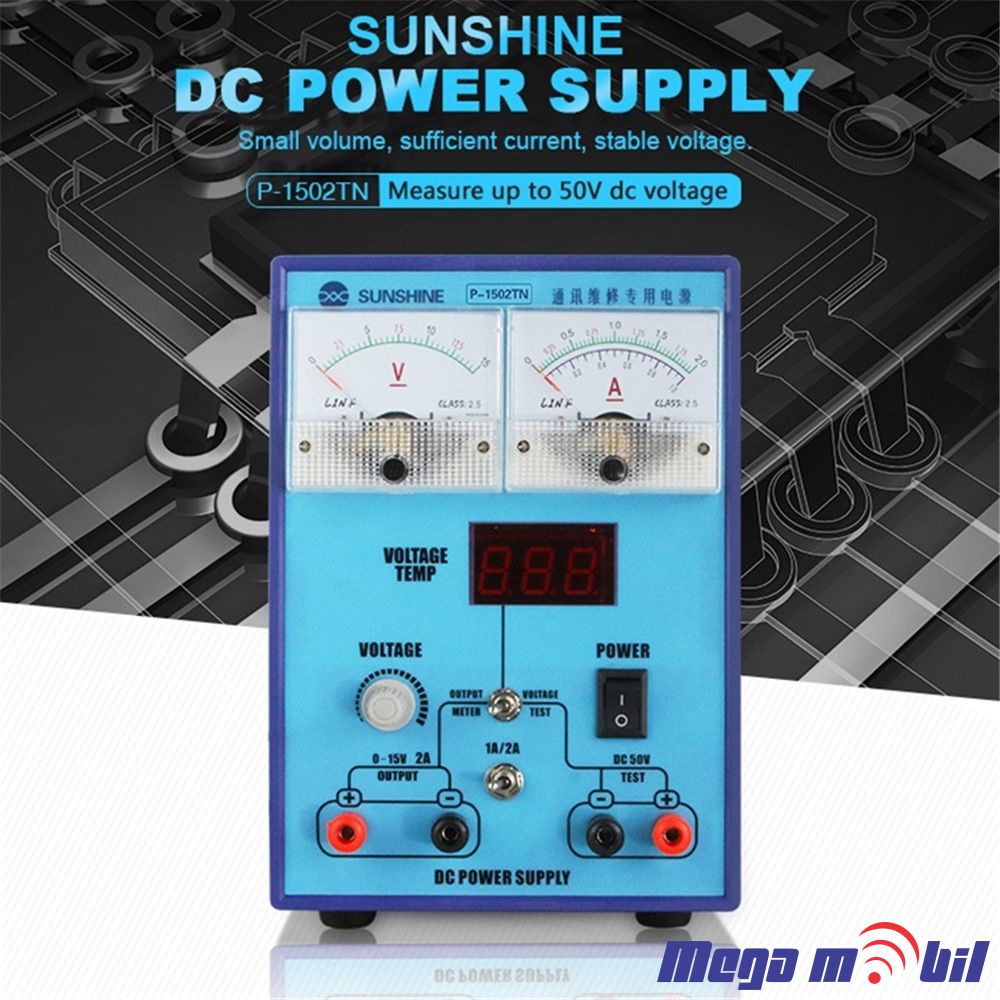

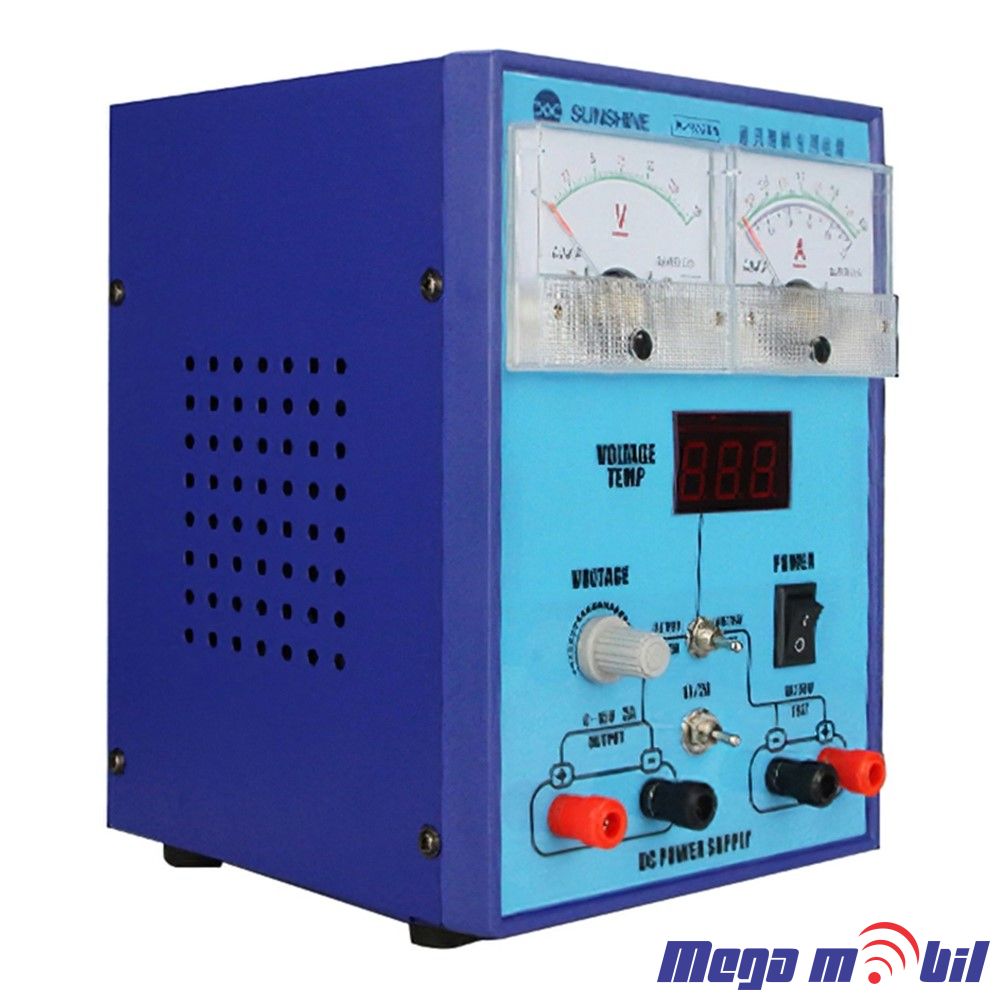

Napojuvanje P-1502TN 15V 2A digital plus analog
Specifications:
| Brand | SUNSHINE |
| Model | P-1502TN |
| Product | DC power supply |

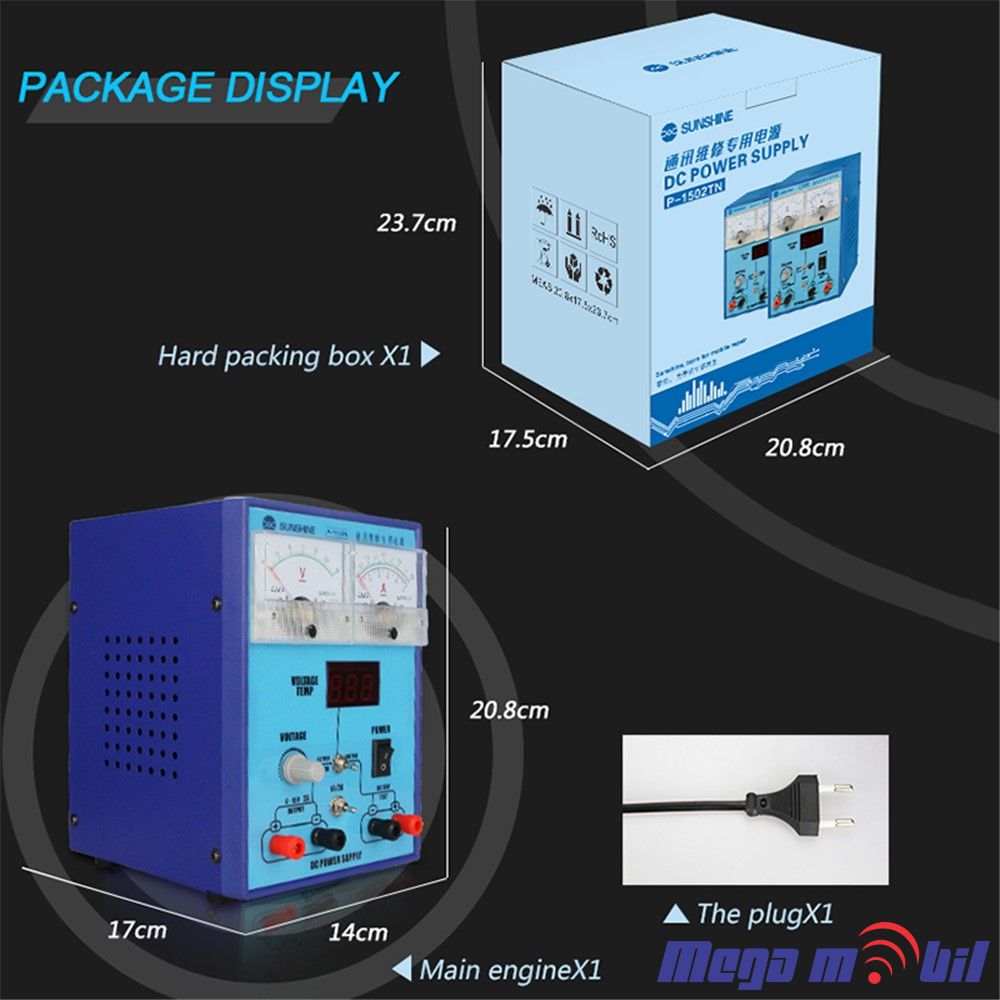

| Size | 140*170*208mm |
| Weight | 1.665kg |
| Measure the voltage | 50V (Maximum) |
| Measure the current | 1A/2A |
| Voltage | 110/220±10% 50Hz/60Hz |
| Working terms temperature | -10℃~40℃ |
| Working terms humidity | <90>#/td### |
| Storage conditions temperature | -20°C~80°C |
| Storage conditions humidity | <80>#/td### |
| Output voltage | 0-15V |
| Load stability | ≤0.01%+2mV |
| Recovery time | ≤100uS |
| Ripple noise | ≤1mV Rms (valid value) |
| Temperature coefficient | ≤300PPm/°C |
| Protect starting current | >standard values 10>#/td### |

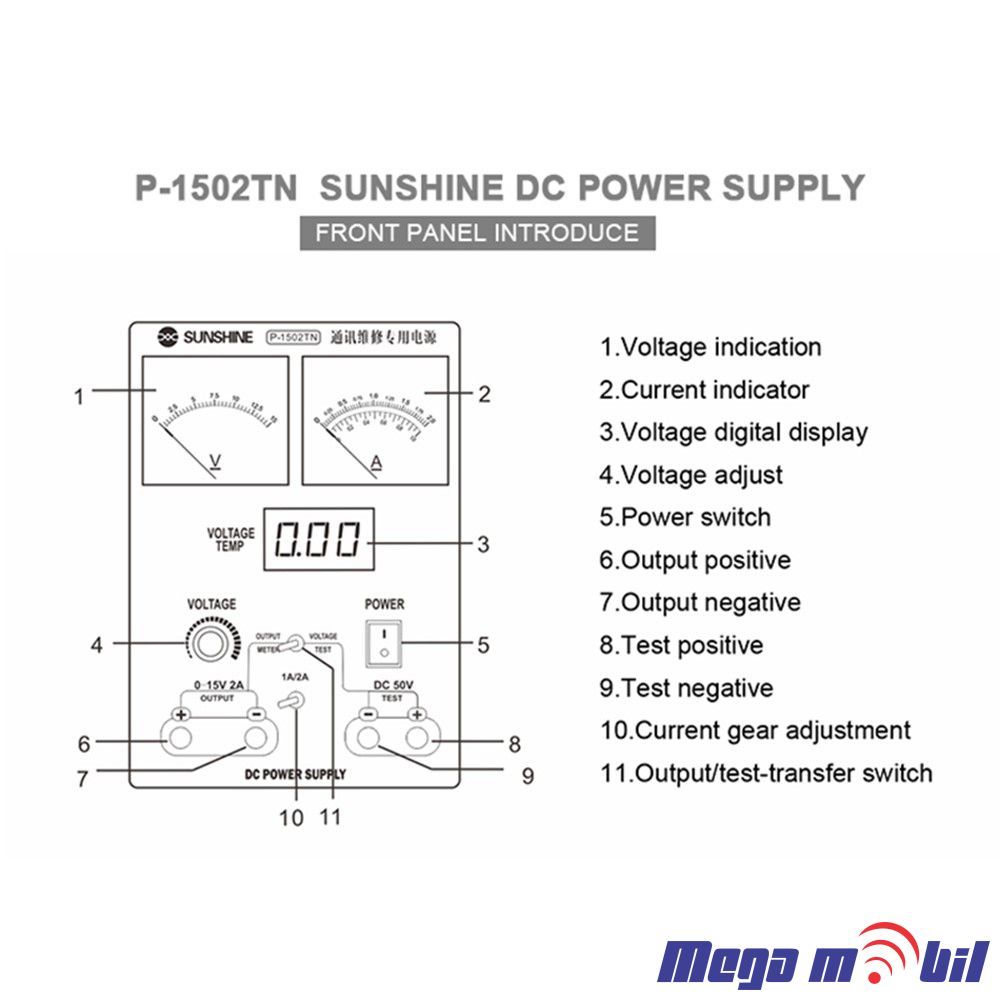

How to use:
- 1. Plugged in
- 2. Will the power switch to "ON" position, the power supply
- 3. The toggle switch to " output according to" the edge
- 4. The VOLTAGE regulation knob to the required output VOLTAGE value
- 5. The left two terminal voltage required for the output value, red for position, black for negative
- 6. Normal machine: the positive connection phone positive, negative phones connect the cathodeIntelligent machines: the positive connection phone positive and negative connection phone next to the cathode and negative interface, the cathode connecting two interfaces

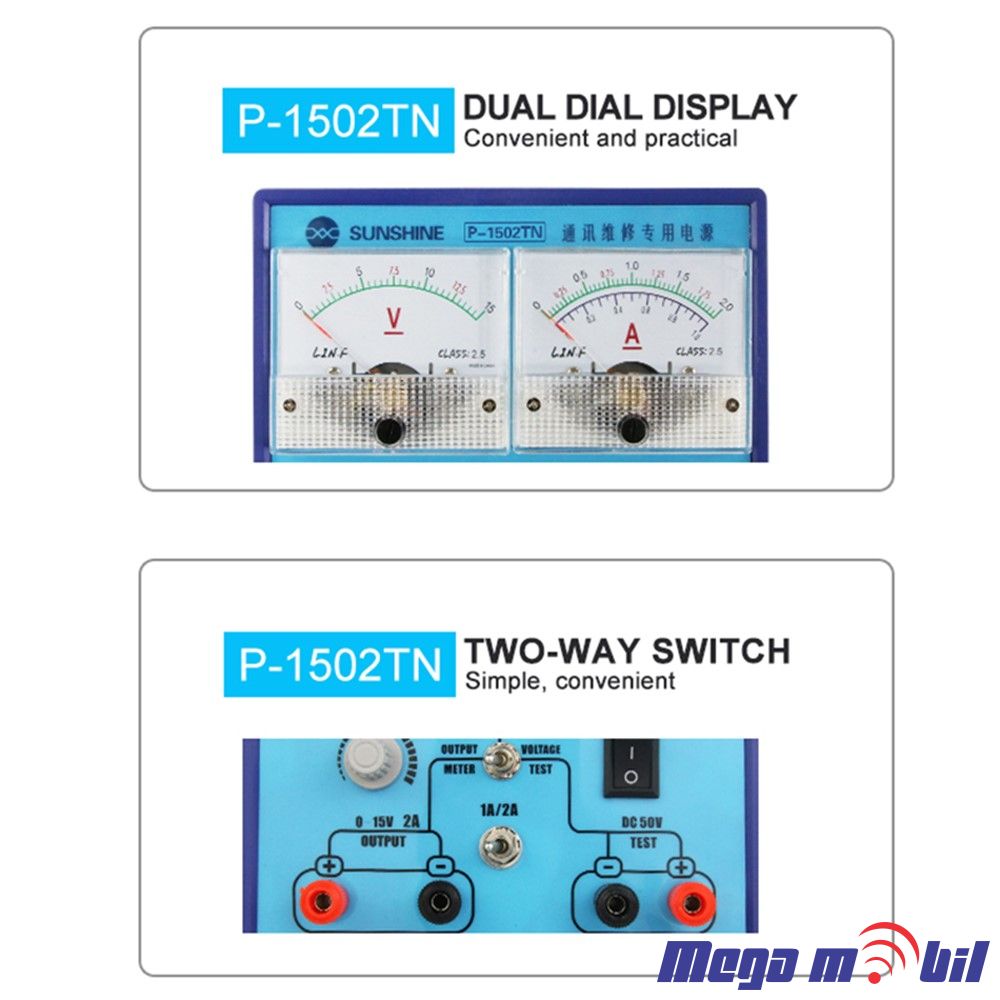

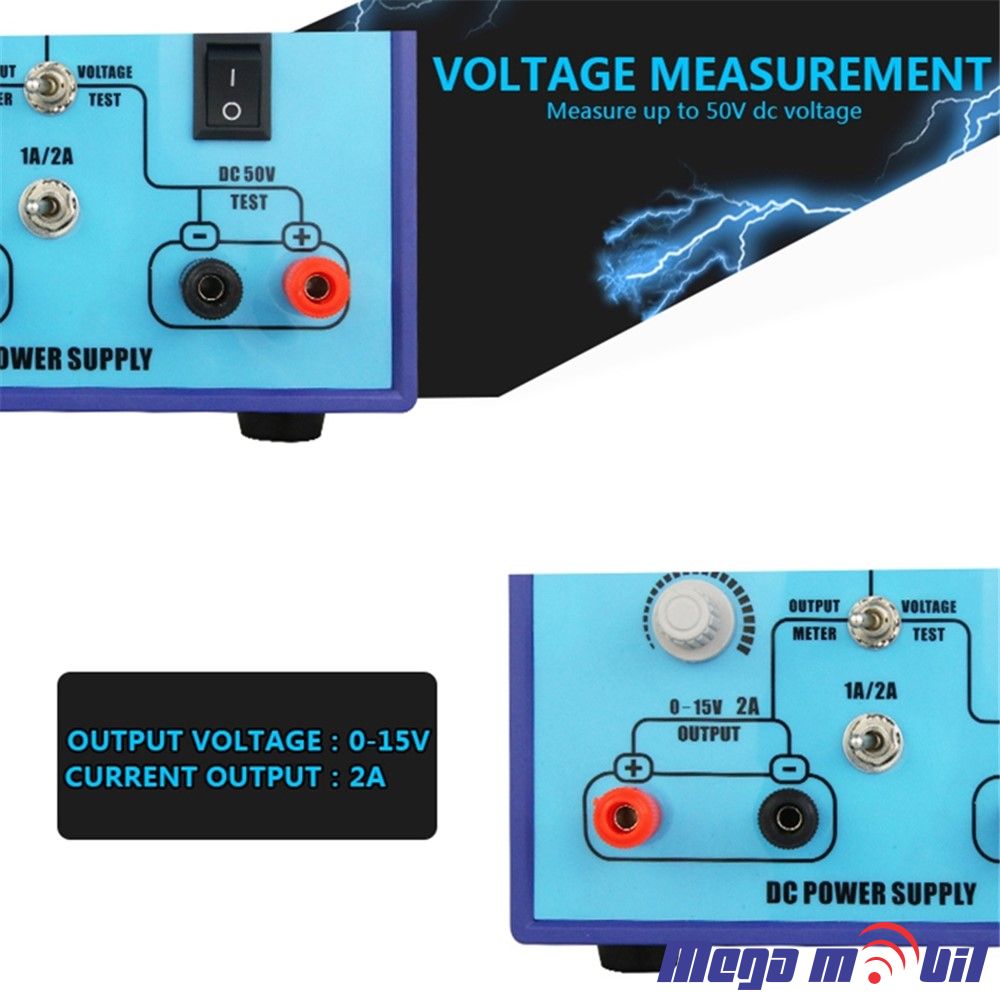

- 7. Toggle switch to the voltage measurement when the edge, pens and lines to connect the output interface, the digital display shows for you measured voltage (note: the voltage measuring range: 0-50V)
- 8. GSM signal test: the phone is in a state of emission, lattive beating strength
- 9. 500MA, 2A current switching device: upward: 2A scale, the downside: 500MA scale, on table computers, mobile phones and other electronic product maintenance, ma dial 500 for slight leakage phone design
