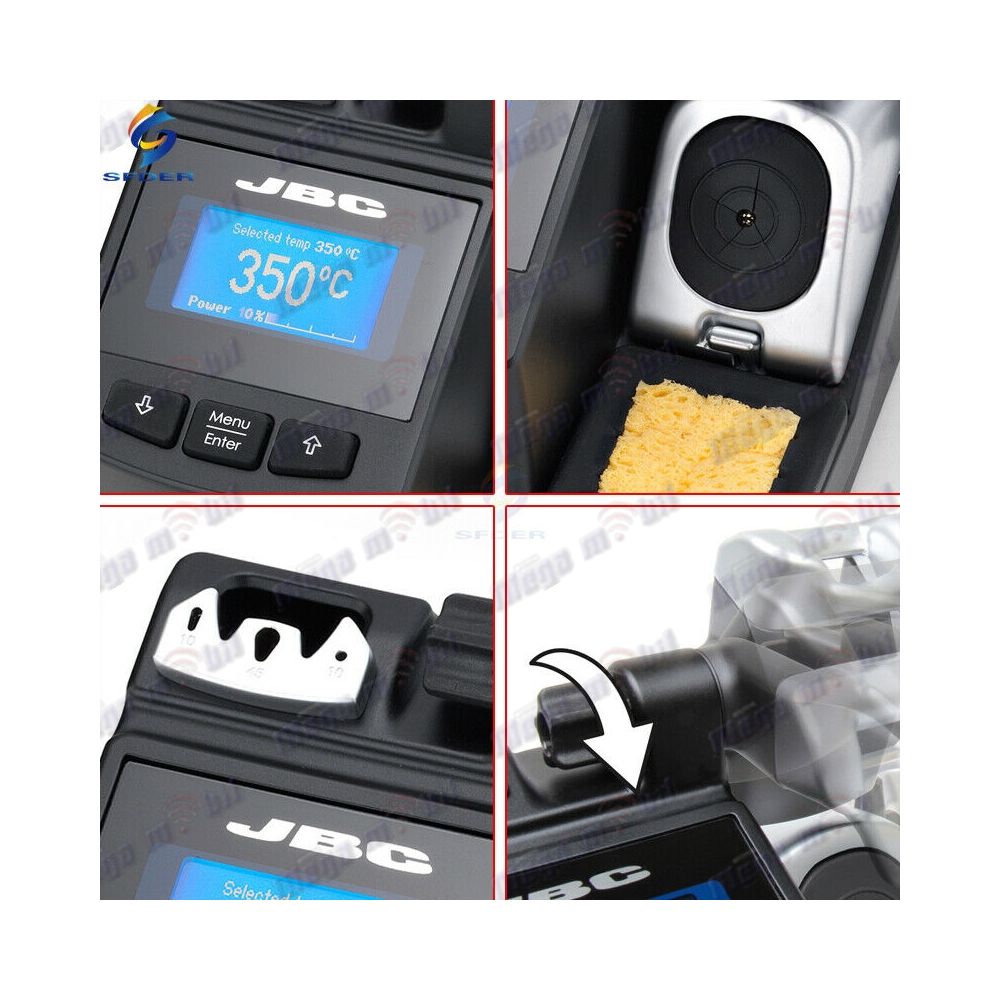

Letkum JBC CD-2SHE so T210-A racka
Со станицата следуваат два врвови гратис
Description:
JBC CD-2SHE Precision Soldering station works with
the JBC exclusive heating system and the intelligent sleep & hibernation,
over 20 parameters to help manage the soldering process,
Professional-grade and Precision Purpose Soldering Station
for Mobile Phone Motherboard Repair.
JBC CD-S soldering station with the JBC Advanced system for general electronic applications.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.
Using the menu you can personalize over 20 parameters to help manage the soldering process.
It features a USB connector to update software, create graphs and manage parameters from a PC.
Complete cleaning system with an antisplash membrane to keep the work area clean.
Use the integrated wiper to remove excess solder from the tip.
Use T210 series handle, with C210 series iron head for precision welding
Power 40W. Can be used 300 degrees low temperature welding
You can use the USB-B type data cable to connect the computer to observe the temperature curve.
2 seconds to 350 degrees
Up to 20 sets of parameters can be set using the menu
Unique sleep + sleep function can extend the life of the tip 5 times
User-friendly handle control, very comfortable to use the feel.
Specifications:
Ambient operating temp: 10-40 C / 50-104 F
Output Peak Power: 130W / 23.5V
Temperature selection: 90-450 C / 190-840 F
Tip to ground resistance: <2 ohms
Tip to ground voltage: <2mV RMS
Voltage: 220V or 110V
List details:
CD Control Unit: CD-2HE (230V)
Precision Purpose Handle: T210-A
Power Cord: 0009401(230V)
Cartridges: C210001*1PCS, C210008*1PCS
Sponge: S0354
Manual: 0017070
