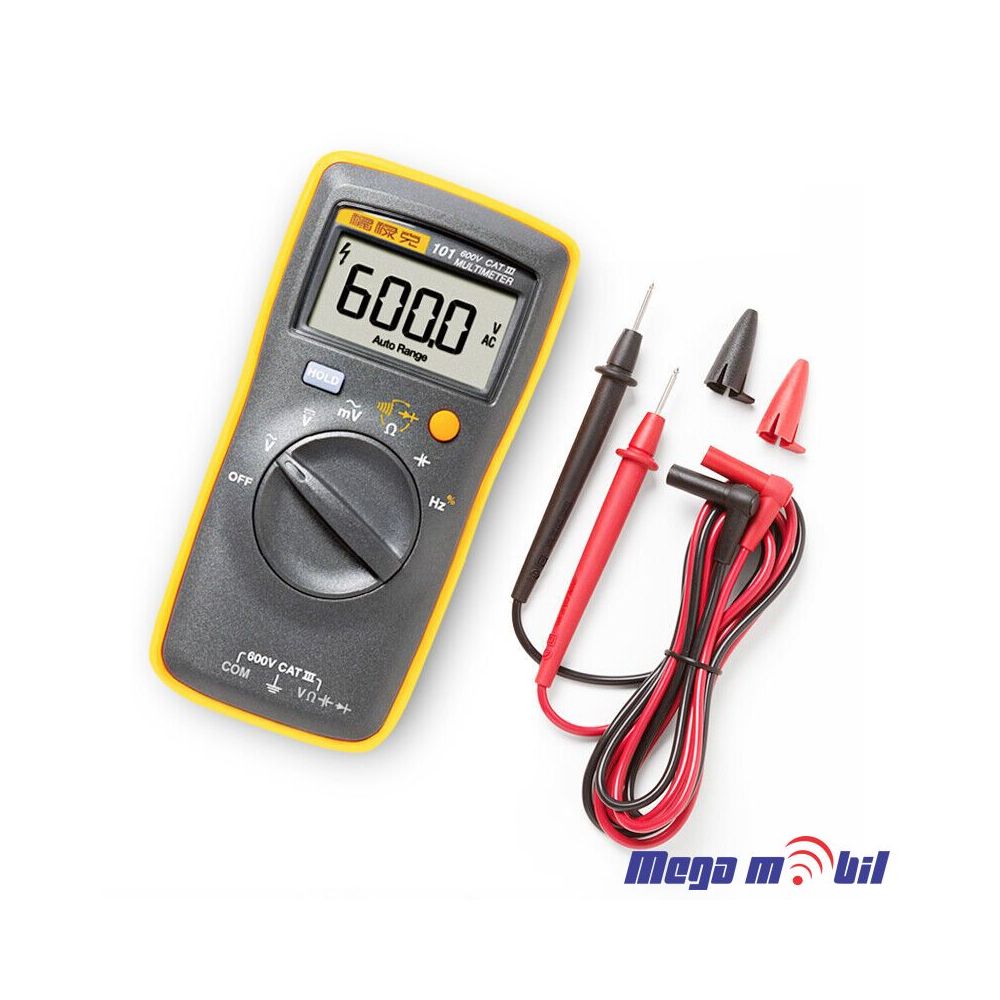

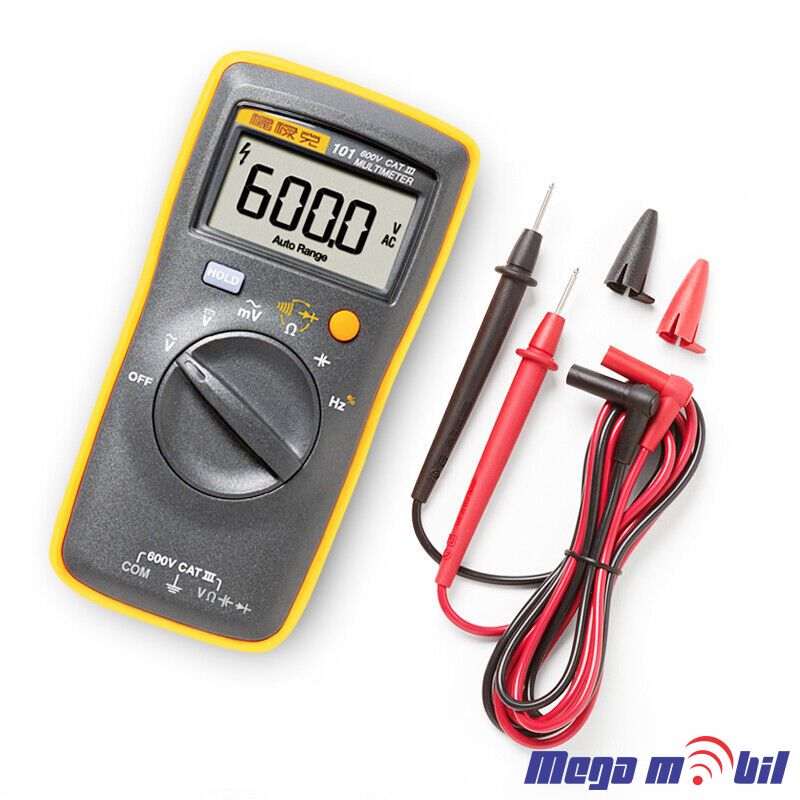

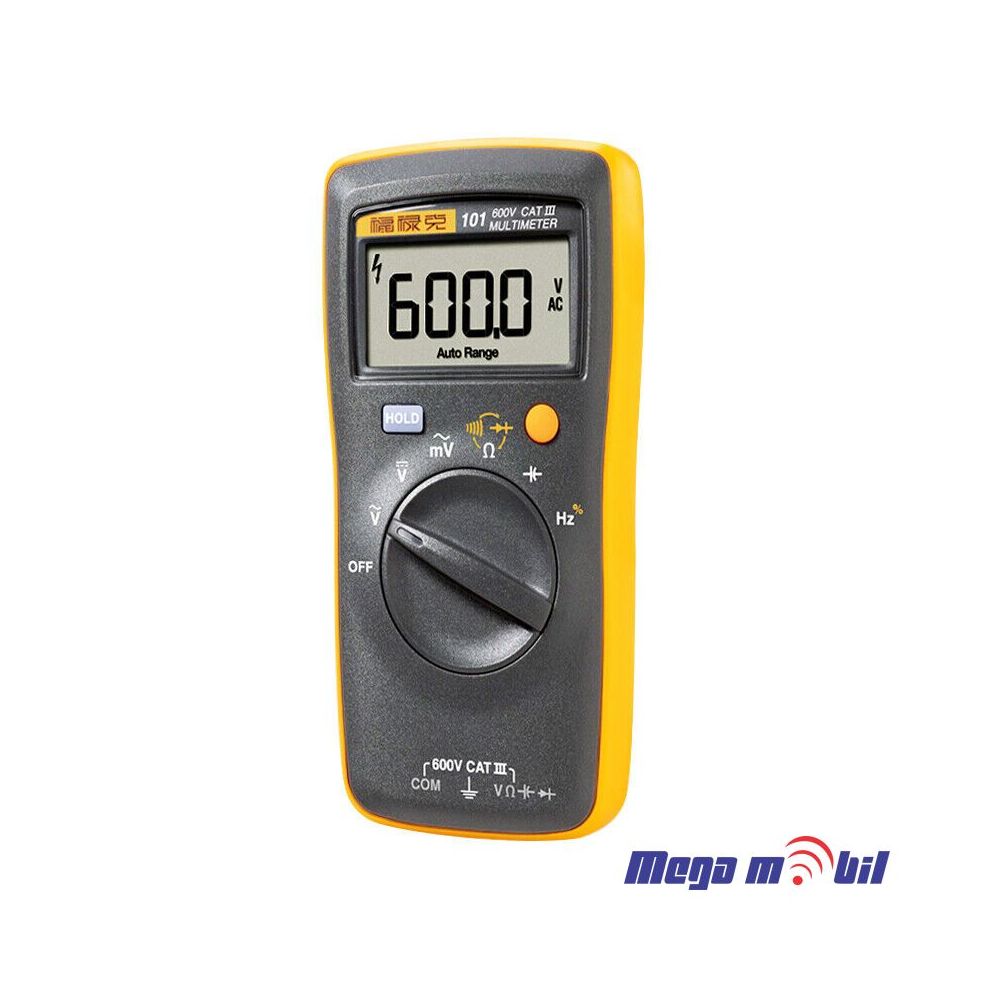

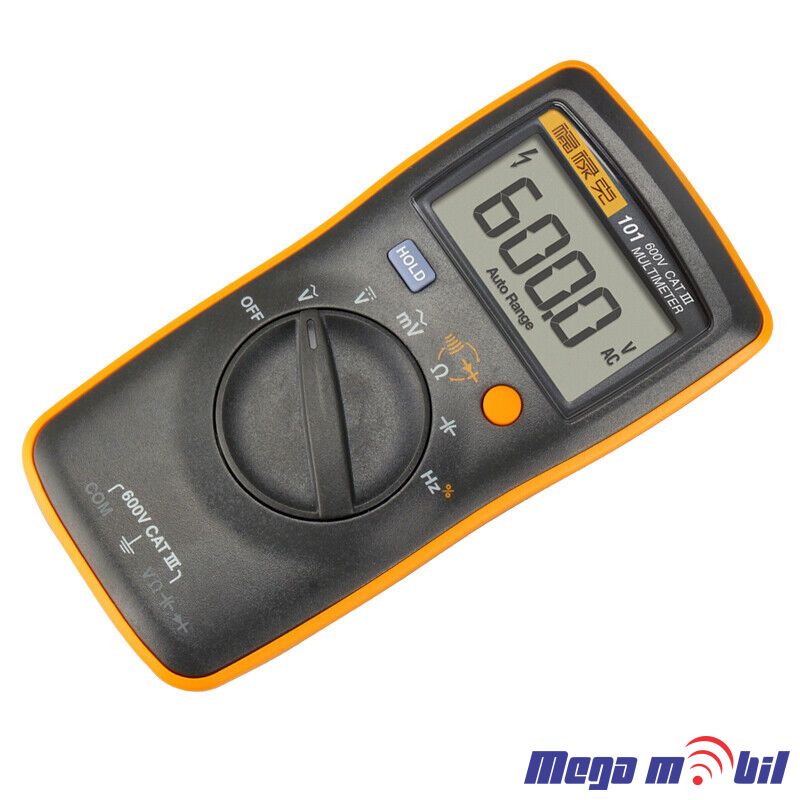

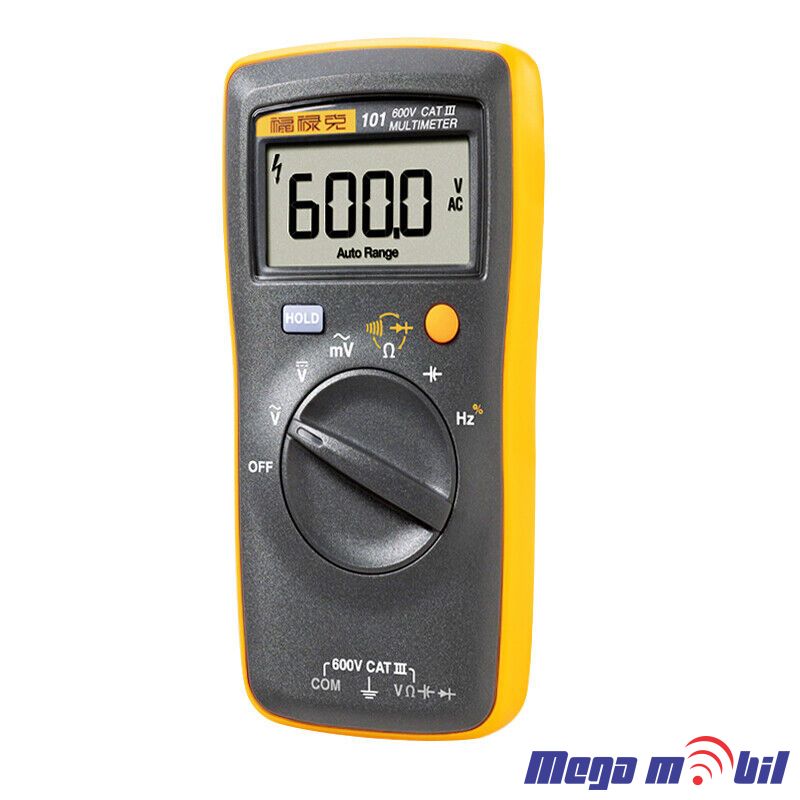

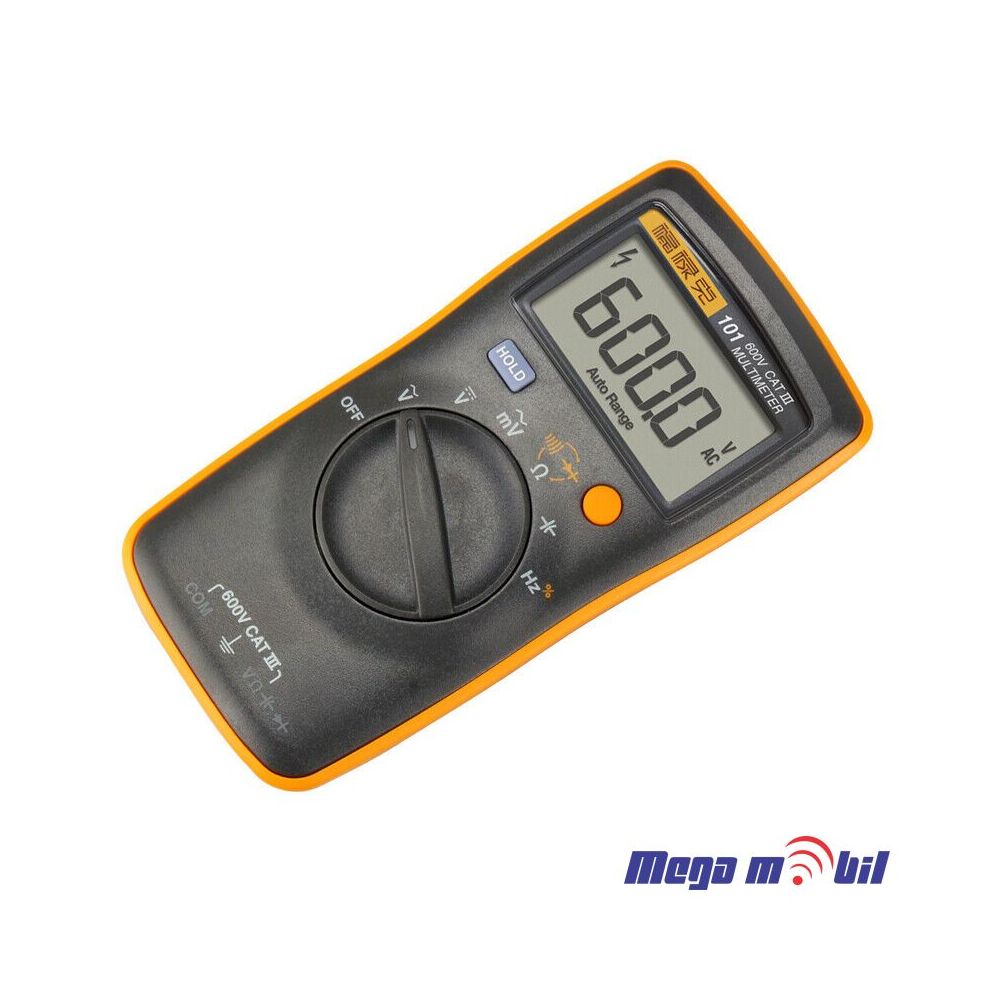

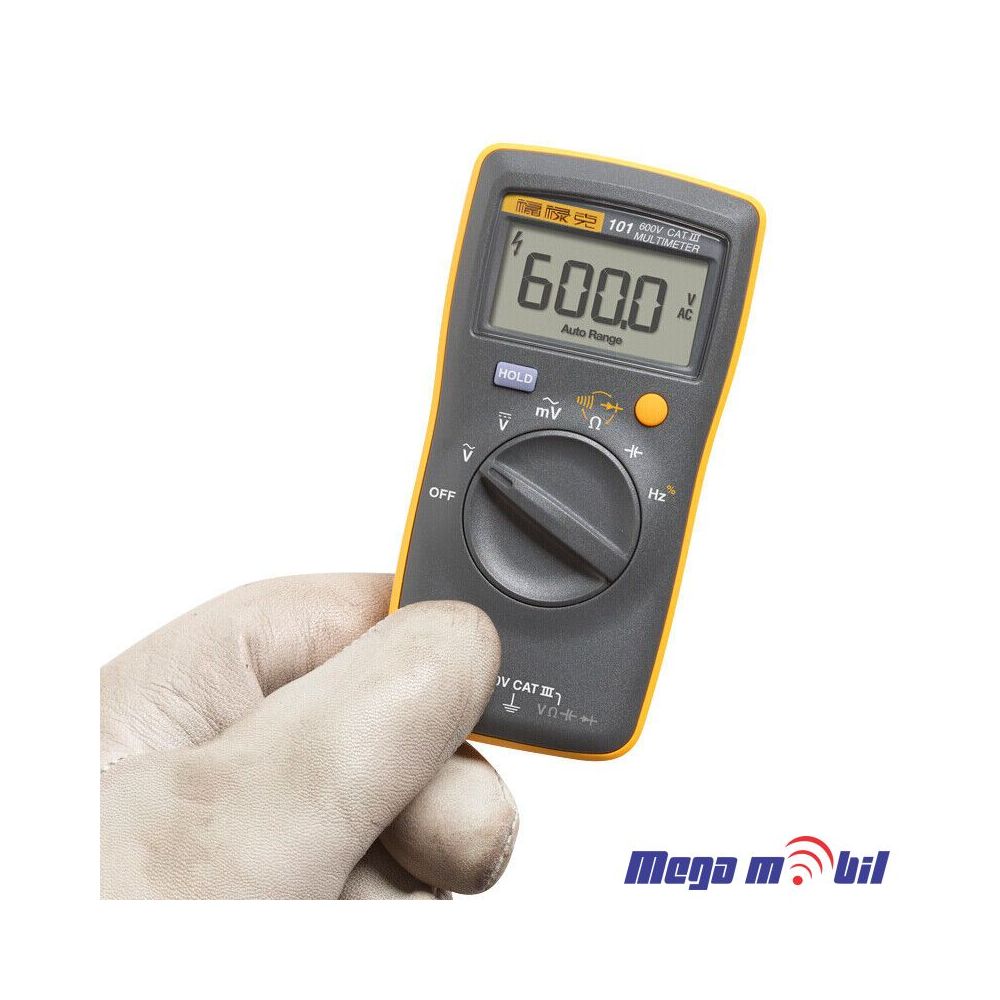

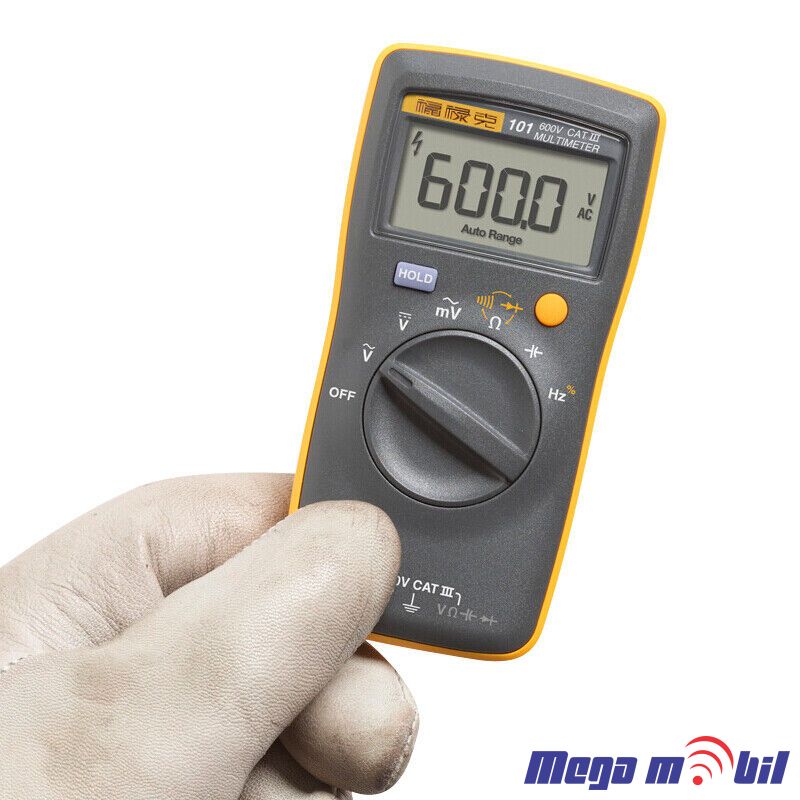

Unimer 101 FLUKE automatic

Во кошничка имате 0 парчиња.
  • Шифра:55573
  • Категорија: Алат

Function

Range

resolution

Accuracy

+/-(%Readings+ Minimum resolution bit)

AC Voltage Measurement

6.000V

0.001V

1%+3

(40Hz-500Hz)

60.00V

0.01V

600.0V

0.1V

DC Voltage Measurement

6.000V

0.001V

0.5%+3

60.00V

0.01V

600.0V

0.1V

AC Millivolt measurement

600.0 mV

0.1mV

3%+3

Diode test

2.000V

0.001V

10>#/p###

Resistance Test

400.0 Ω

0.1 Ω

0.5 % + 3

4.000 kΩ

0.001 kΩ

0.5 % + 2

40.00 kΩ

0.01 kΩ

0.5 % + 2

400.0 kΩ

0.1 kΩ

0.5 % + 2

4.000 MΩ

0.001 MΩ

0.5 % + 2

40.00 MΩ

0.01 MΩ

1.5% + 3

Capacitance Test

50.00 nF

0.01 nF

2 % + 5

500.0 nF

0.1 nF

2 % + 5

5.000 μF

0.001 μF

5 % + 5

50.00 μF

0.01 μF

5 % + 5

500.0 μF

0.1 μF

5 % + 5

1000 μF

1 μF

5 % + 5

Frequency Test(10Hz-100KHz)

50.00 Hz

0.01 Hz

0.1 % + 3

500.0 Hz

0.1 Hz

5.000 kHz

0.001 kHz

50.00 kHz

0.01 kHz

100.0 kHz

0.1 kHz

Duty Cycle (%)

1%-99>#/p###

0.10>#/p###

1% Typical values

Maximum input voltage for terminal

600V

LCD Display

6000words  the refresh frequency 3/s

Power supply

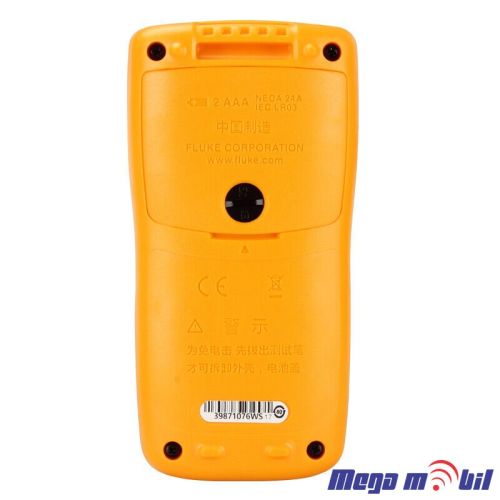

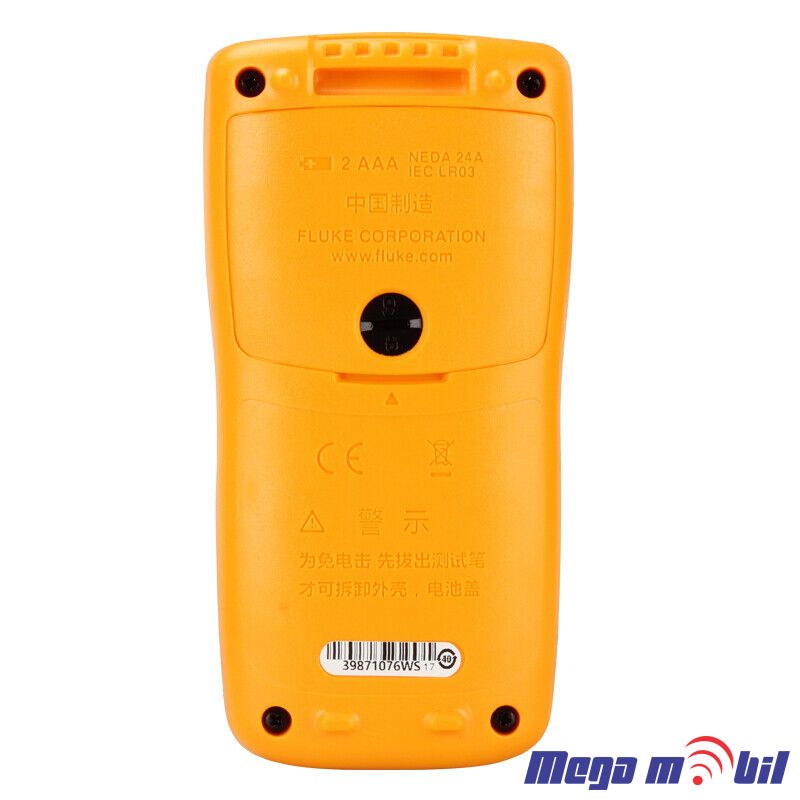

2 AAA, NEDA 24A, IEC LR03(Maybe not included in the package)

The batteries’ life

Over 200 hours

Operating temperature

0 °C to 40 °C

Storage Temperature

-30 °C to 60 °C

Operating relative humidity

Non condensing 10°C  ≤90 % at 10 °C to 30 °C;

≤75 % at 30 °C to 40 °C

Operating relative humidity (40 MΩ)

≤80 % at 10 °C to 30 °C; ≤70 % at 30 °C to 40 °C (Without Consideration)

Operating altitude

2000m

Storage altitude

12000m

temperature coefficient

0.1 X (specified accuracy) /°C (<18 °C or >28 °C

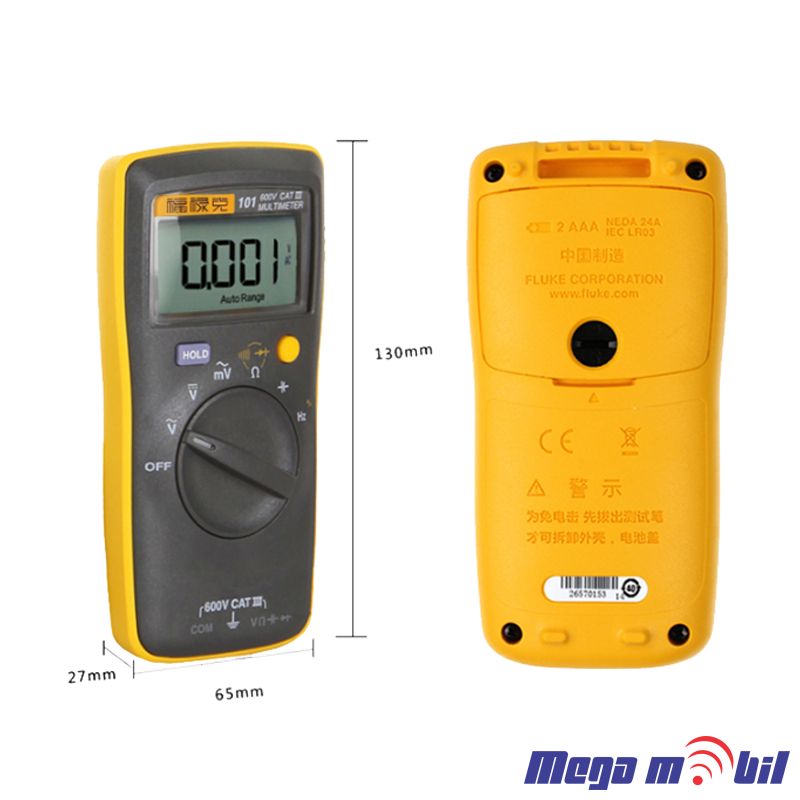

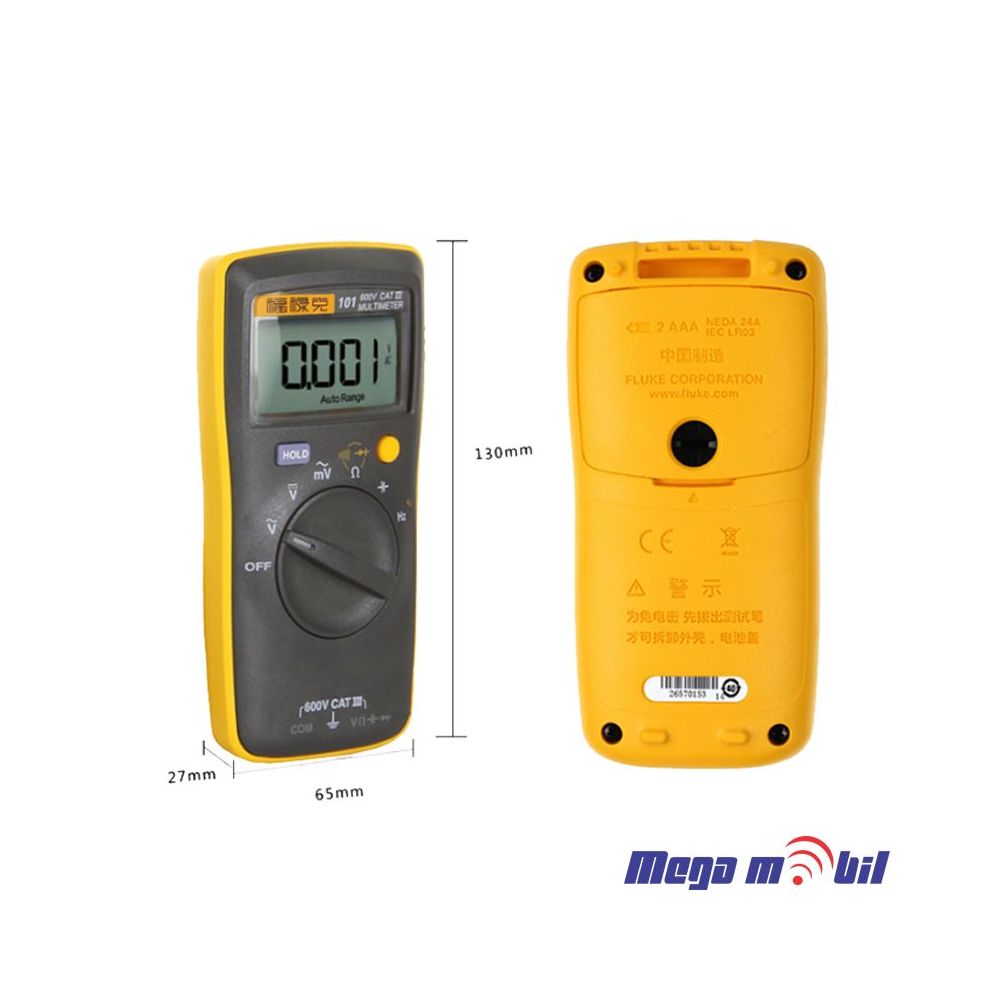

Size(H*W*L)

130 mm x 65 mm x 27mm

Weight

348g

IP rating

IEC 60529: IP 40

Safety level

IEC 61010-1: 600 V CAT III, Pollution Degree 2

Electromagnetic interference

IEC 61326-1: handheld

3.600 ден
